My Part Number:
Part Number: 0975254103/10M
Manufacturer Code: 34618
Multiples of: 1 | Minimum Order: 1

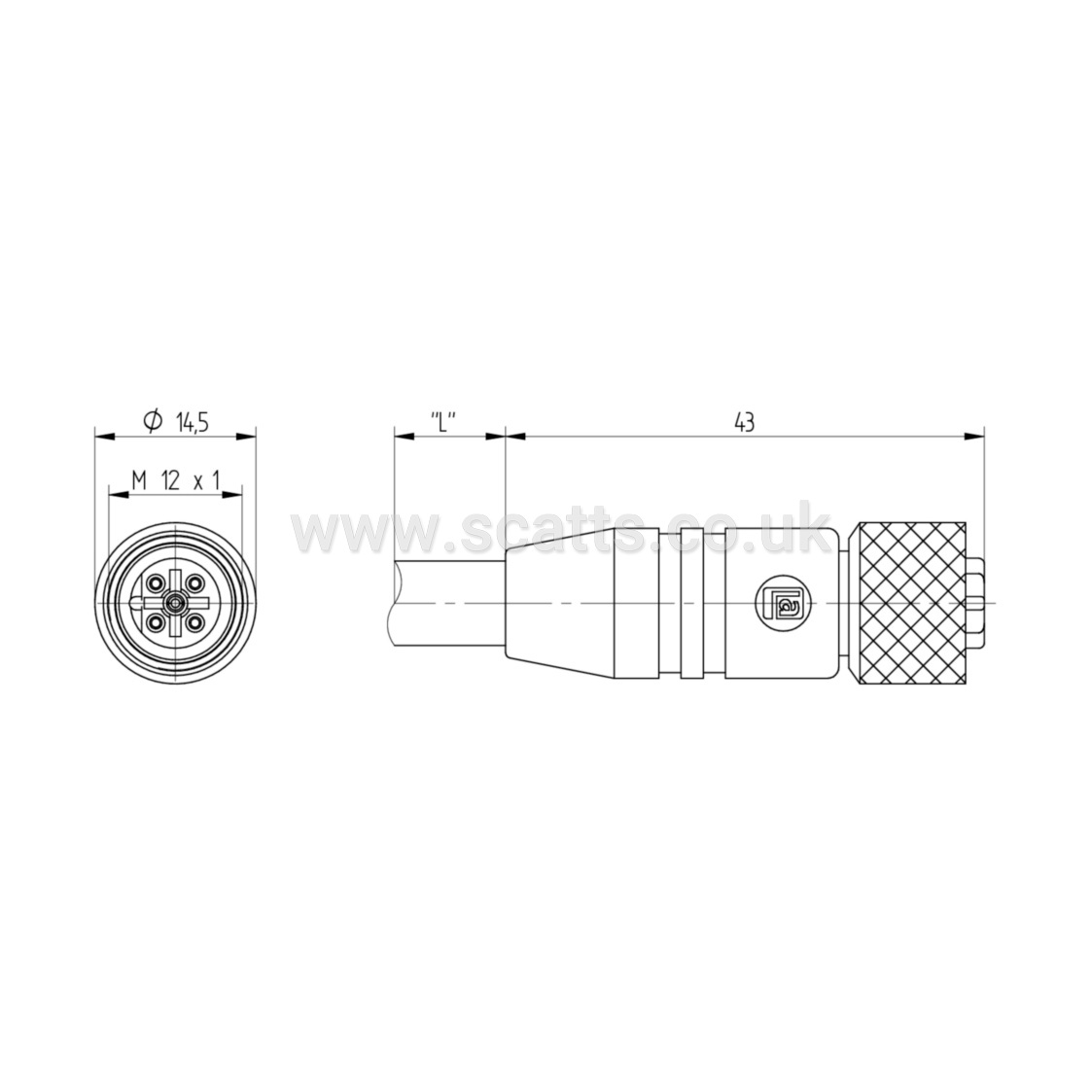

PROFIBUS Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, B-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; PUR violet cable, 2-wires, 0.34 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67 |
|
Approvals |
CE, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M12 |
|
Voltage |
60 V DC, 60 V DC |
|
Number Of Pins |
5 |
|
Connection Pin Coding |
B |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Current Rating |
4 A |
|
Insulation Material |
PUR |
|
Cable Length |
10 m |
|
Additional Features |
Shielded: Yes |
|
Minimum Ambient Temperature |
-25 °C |
|
Maximum Ambient Temperature |
80 °C |
£61.17
per 1 (ex. VAT)£73.40
per 1 (inc. VAT)PROFIBUS Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, B-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; PUR violet cable, 2-wires, 0.34 mm²
