My Part Number:
Part Number: PRKMWV4-07/10M
Manufacturer Code: 934773008
Multiples of: 1 | Minimum Order: 1

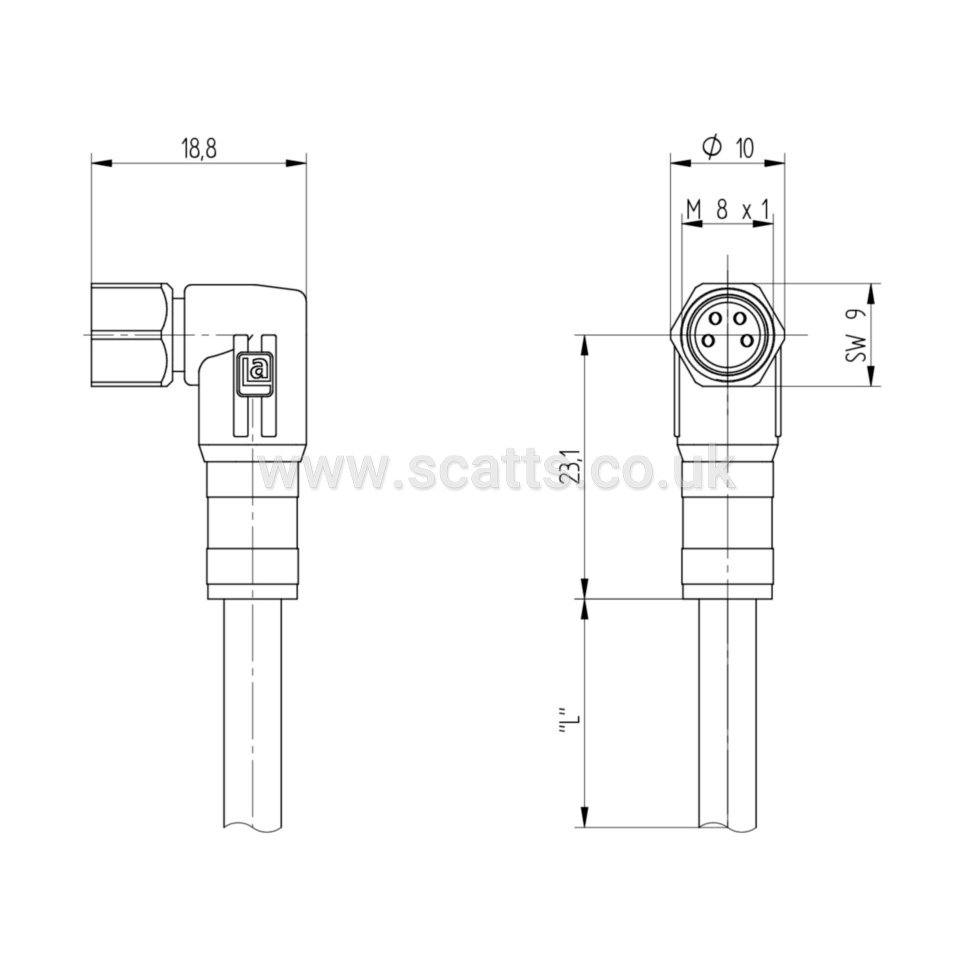

M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset: Female, angled, 4-pin, A-coded, orange body, 30 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP69K |
|
Approvals |
CE, RoHS |
Additional Information |
Connector Material: Stainless Steel |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M8 |
|
Voltage |
30 V DC, 30 V DC |
|
Number Of Pins |
4 - Four Pin |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Angled |
|
Current Rating |
4 A |
|
Insulation Colour |
Orange |
|
Insulation Material |
PVC |
|
Cable Length |
10 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-25 °C |
|
Maximum Ambient Temperature |
70 °C |
£26.44
per 1 (ex. VAT)£31.73
per 1 (inc. VAT)M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset: Female, angled, 4-pin, A-coded, orange body, 30 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²
