My Part Number:
Part Number: RKMWV3-224/20M
Manufacturer Code: 47912
Multiples of: 1 | Minimum Order: 1

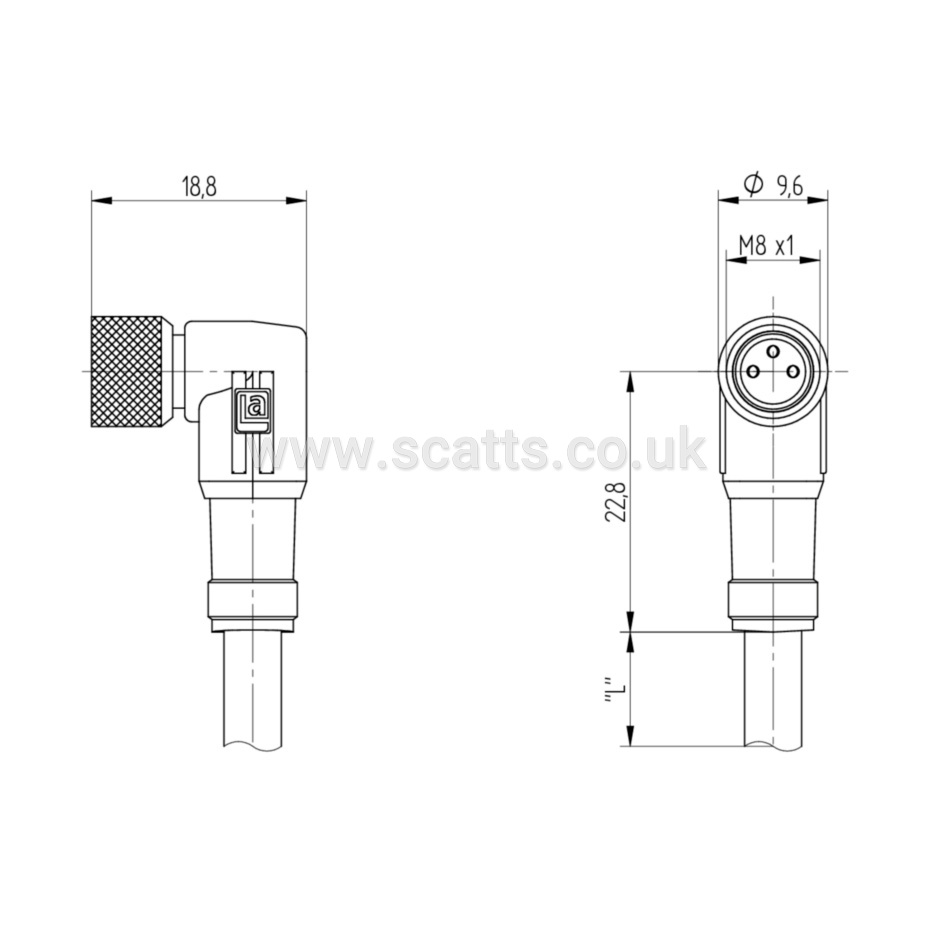

M8 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PUR black cable, 3-wires, 0.34 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP69K |
|
Approvals |
CE, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M8 |
|
Voltage |
50 V AC, 60 V DC, 50 V AC, 60 V DC |
|
Number Of Pins |
3 - Three Pin |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Angled |
|
Current Rating |
4 A |
|
Insulation Colour |
Black |
|
Insulation Material |
PUR |
|
Cable Length |
20 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
