My Part Number:
Part Number: RKT4U-07/5M
Manufacturer Code: 5885
Multiples of: 1 | Minimum Order: 1

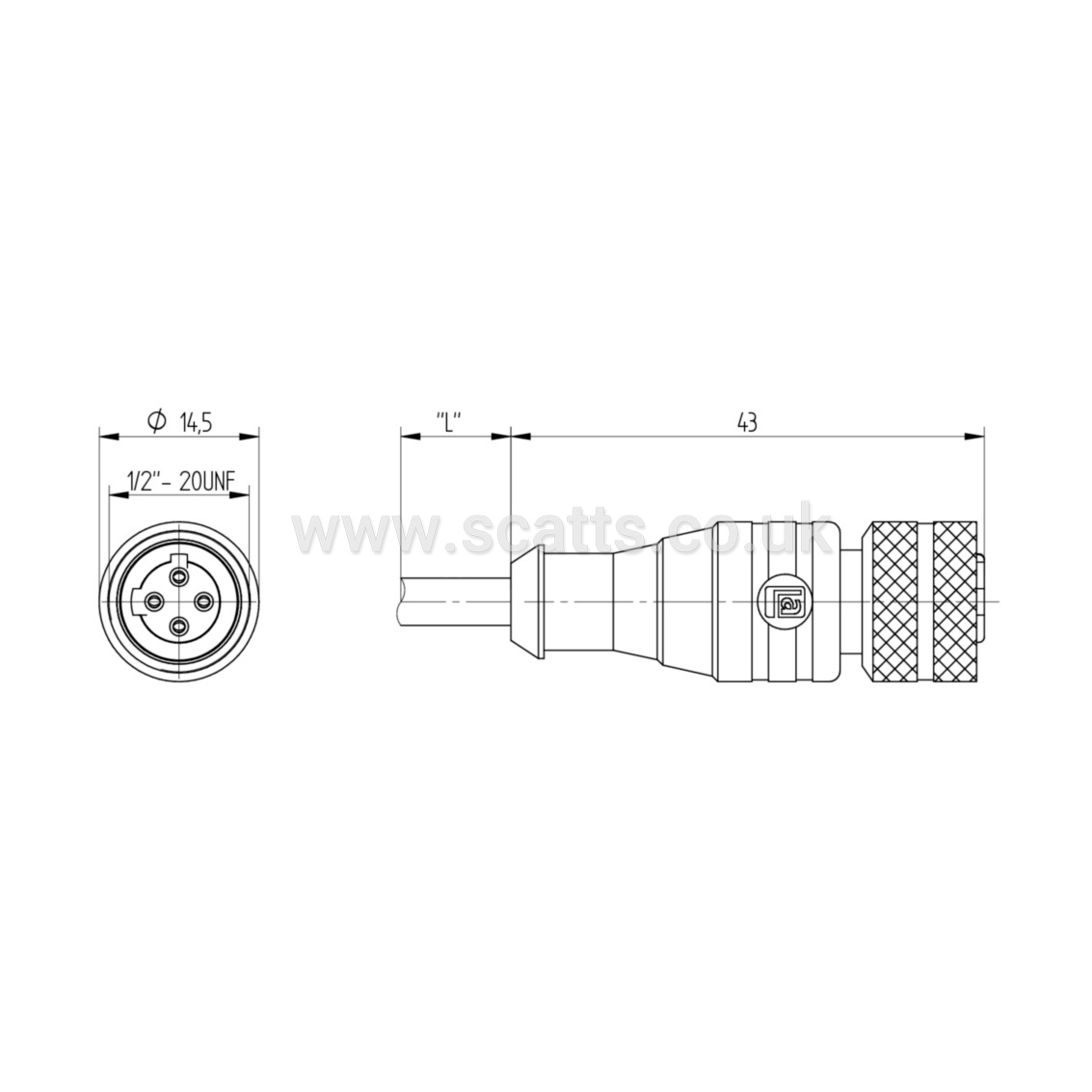

1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, U-coded, orange body, 230 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67 |
|
Approvals |
CE, UL - US Only, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Number Of Pins |
4 - Four Pin |
|
Connection Pin Coding |
U (1/2"-20UNF-2B) |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Voltage Rating |
230 V AC |
|
Current Rating |
2.5 A UL, 4 A |
|
Insulation Colour |
Orange |
|
Insulation Material |
PVC |
|
Cable Length |
5 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
£15.46
per 1 (ex. VAT)£18.55
per 1 (inc. VAT)1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, U-coded, orange body, 230 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²
