My Part Number:
Part Number: RKT5-56/2M
Manufacturer Code: 11381
Multiples of: 1 | Minimum Order: 1

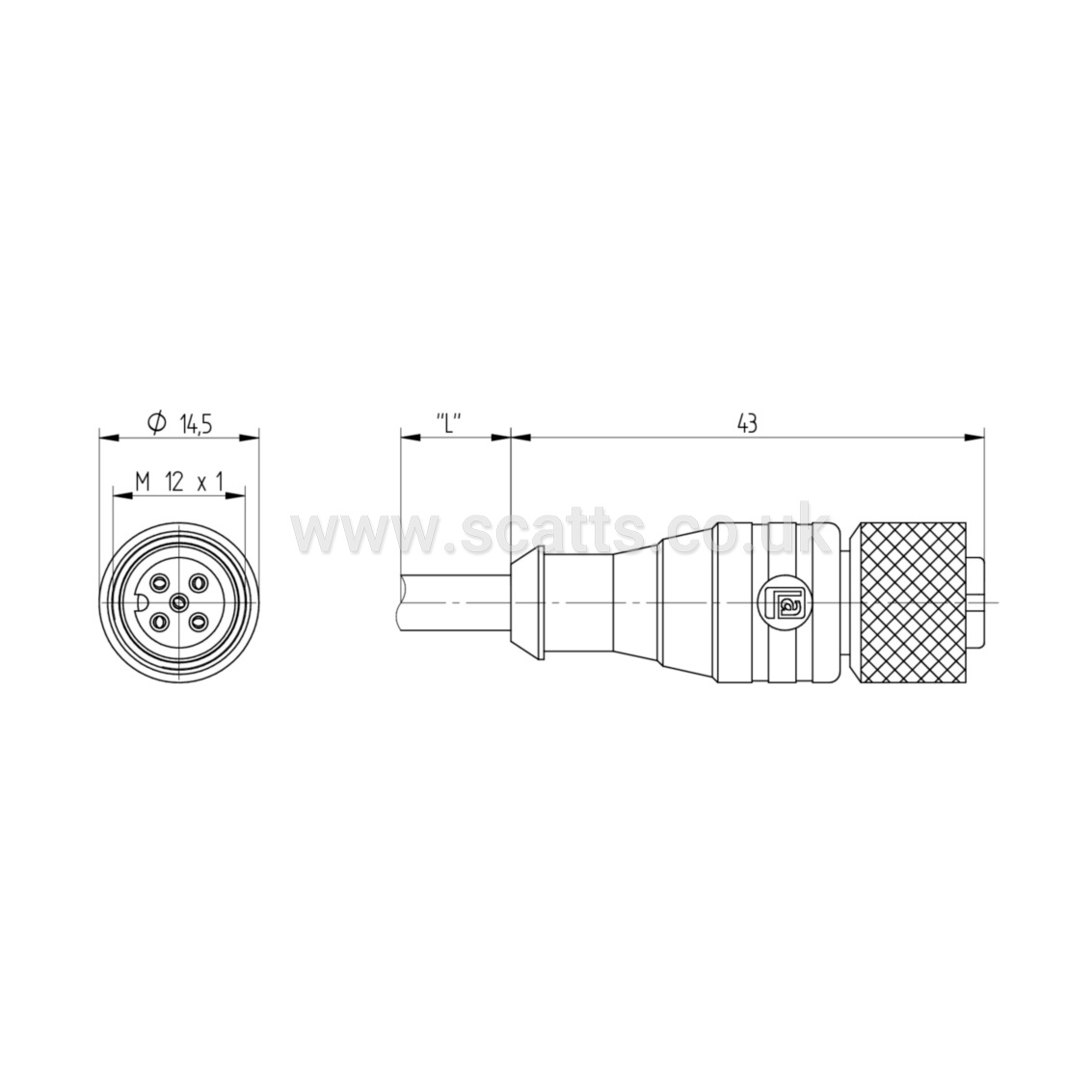

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 5-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 0.34 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67 |
|
Approvals |
CE, UL - US Only, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M12 |
|
Voltage |
50 V AC, 60 V DC, 50 V AC, 60 V DC |
|
Number Of Pins |
5 |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Current Rating |
4 A |
|
Insulation Colour |
Orange |
|
Insulation Material |
PVC |
|
Cable Length |
10 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
£12.68
per 1 (ex. VAT)£15.22
per 1 (inc. VAT)M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 5-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 0.34 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67 |
|
Approvals |
CE, UL - US Only, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M12 |
|
Voltage |
50 V AC, 60 V DC, 50 V AC, 60 V DC |
|
Number Of Pins |
5 |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Current Rating |
4 A |
|
Insulation Colour |
Orange |
|
Insulation Material |
PVC |
|
Cable Length |
10 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
