My Part Number:
Part Number: RKT8-282/20M
Manufacturer Code: 76612
Multiples of: 1 | Minimum Order: 1

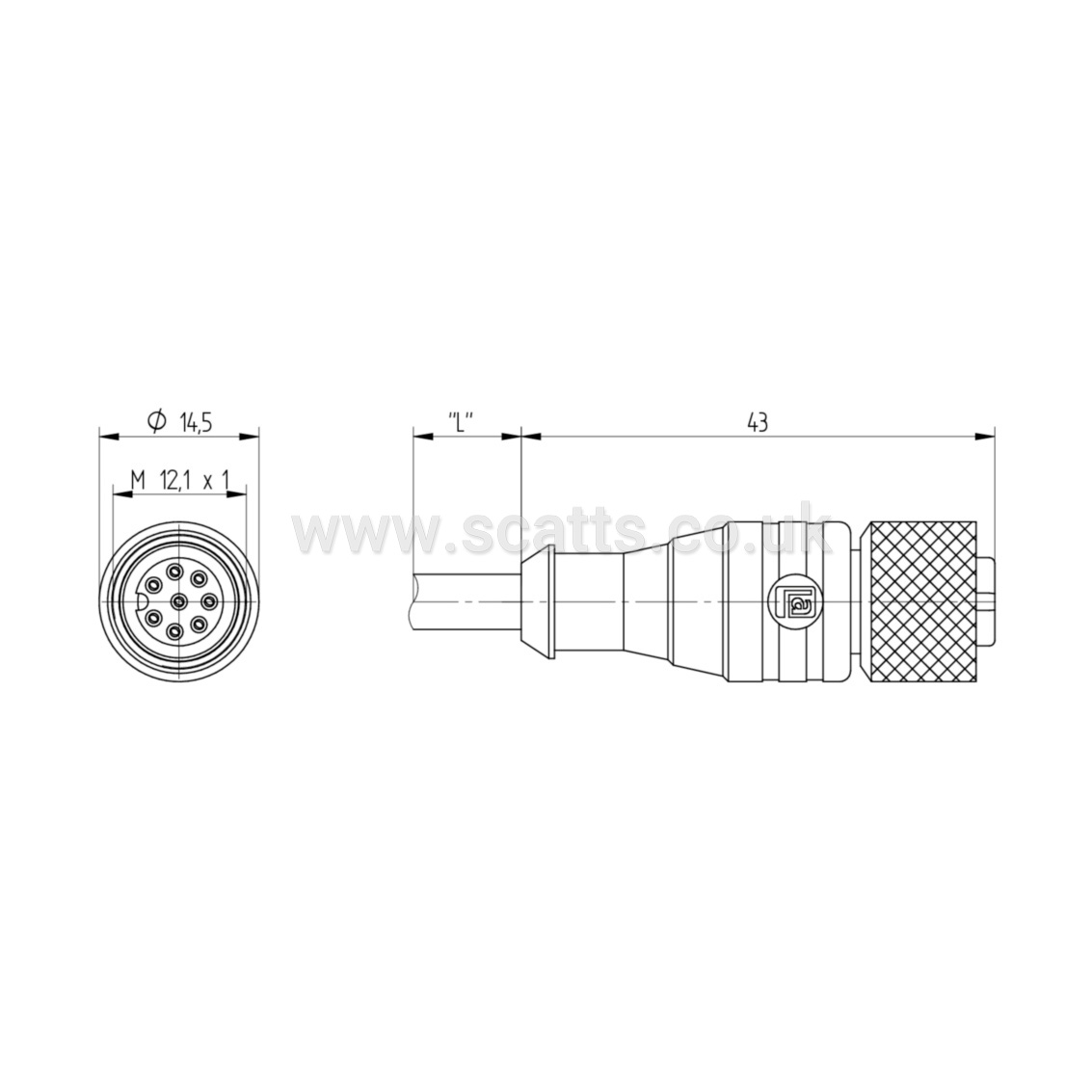

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 8-pin, A-coded, translucent body, 30 V AC/DC, 2 A; PUR black cable, 7-wires, 0.25 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP68, IP69K |
|
Approvals |
CE, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M12 |
|
Voltage |
30 V DC, 30 V DC |
|
Number Of Pins |
8 |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Current Rating |
2 A |
|
Insulation Colour |
Black |
|
Insulation Material |
PUR |
|
Cable Length |
20 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
|
IP68 Rating Method |
1 m for 24 hours |
|
£61.64
per 1 (ex. VAT)£73.97
per 1 (inc. VAT)M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 8-pin, A-coded, translucent body, 30 V AC/DC, 2 A; PUR black cable, 7-wires, 0.25 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP68, IP69K |
|
Approvals |
CE, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M12 |
|
Voltage |
30 V DC, 30 V DC |
|
Number Of Pins |
8 |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Current Rating |
2 A |
|
Insulation Colour |
Black |
|
Insulation Material |
PUR |
|
Cable Length |
20 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
|
IP68 Rating Method |
1 m for 24 hours |
|
