RSMV4-RKMV4-07/2M
RSMV4-RKMV4-07/2M
RSMV4-RKMV4-07/2M
RSMV4-RKMV4-07/2M
RSMV4-RKMV4-07/2M
RSMV4-RKMV4-07/2M

M8 M / M8 F 4P JUMPER PVC 2.0M

My Part Number:

Part Number: RSMV4-RKMV4-07/2M

Manufacturer Code: 52253

Multiples of: 1 | Minimum Order: 1

View Technical Documents
CE
UL
ROHS
Currently out of stock - available to back order

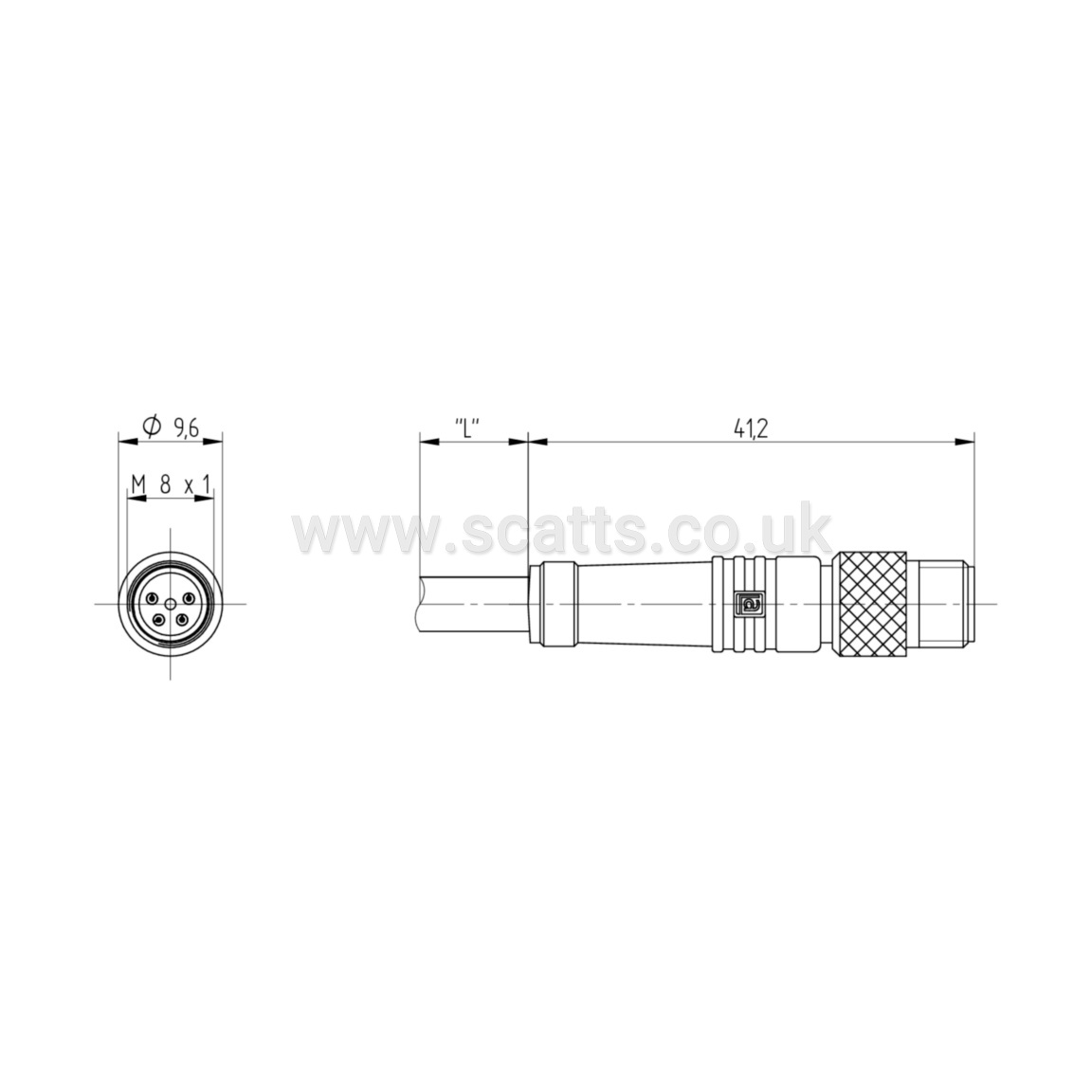

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 4-pin M8 Standard connector to female straight A-coded translucent 4-pin M8 Standard connector, 30 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²

There are currently no videos available for this product
Brand
LUMBERG AUTOMATION
IP Rating
IP65, IP67
Approvals
CE, UL - US Only, RoHS
Additional Information
Connector Material: Nickel Plated Brass
Connection Method
Coupling Screw
Connection Method B
Coupling Nut
Connection Type
Double End
Connection Size
M8
Voltage
30 V DC, 30 V DC
Number Of Pins
4 - Four Pin
Connection Pin Coding
A
Connection Gender
Male
Connection Orientation
Straight
Connection Size B
M8
Connection Pin Coding B
A
Connection Gender B
Female
Connection Orientation B
Straight
Current Rating
4 A
Insulation Colour
Orange
Insulation Material
PVC
Cable Length
2 m
Additional Features
Shielded: No
Minimum Ambient Temperature
-40 °C
Maximum Ambient Temperature
90 °C

£18.47

per 1 (ex. VAT)

£22.16

per 1 (inc. VAT)
Quantity:
add to list

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 4-pin M8 Standard connector to female straight A-coded translucent 4-pin M8 Standard connector, 30 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²

There are currently no videos available for this product
Brand
LUMBERG AUTOMATION
IP Rating
IP65, IP67
Approvals
CE, UL - US Only, RoHS
Additional Information
Connector Material: Nickel Plated Brass
Connection Method
Coupling Screw
Connection Method B
Coupling Nut
Connection Type
Double End
Connection Size
M8
Voltage
30 V DC, 30 V DC
Number Of Pins
4 - Four Pin
Connection Pin Coding
A
Connection Gender
Male
Connection Orientation
Straight
Connection Size B
M8
Connection Pin Coding B
A
Connection Gender B
Female
Connection Orientation B
Straight
Current Rating
4 A
Insulation Colour
Orange
Insulation Material
PVC
Cable Length
2 m
Additional Features
Shielded: No
Minimum Ambient Temperature
-40 °C
Maximum Ambient Temperature
90 °C
