My Part Number:
Part Number: RSMV5-RKMV5-293/0.6M
Manufacturer Code: 934894218
Multiples of: 1 | Minimum Order: 1

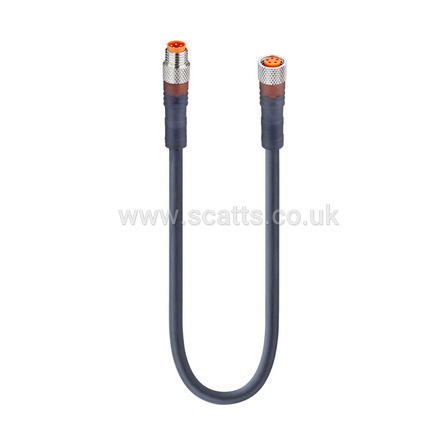

Sensor/Actuator Double-Ended Cordset: Male straight B-coded translucent 5-pin M8 Standard connector to female straight B-coded translucent 5-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.34 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP69K |
|
Approvals |
CE, UL - US Only, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Screw |
|
Connection Method B |
Coupling Nut |
|
Connection Type |
Double End |
|
Connection Size |
M8 |
|
Voltage |
50 V AC, 60 V DC, 50 V AC, 60 V DC |
|
Number Of Pins |
5 |
|
Connection Pin Coding |
B |
|
Connection Gender |
Male |
|
Connection Orientation |
Straight |
|
Connection Size B |
M8 |
|
Connection Pin Coding B |
B |
|
Connection Gender B |
Female |
|
Connection Orientation B |
Straight |
|
Current Rating |
4 A |
|
Insulation Colour |
Black |
|
Insulation Material |
PUR |
|
Cable Length |
0.6 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
£23.04
per 1 (ex. VAT)£27.65
per 1 (inc. VAT)Sensor/Actuator Double-Ended Cordset: Male straight B-coded translucent 5-pin M8 Standard connector to female straight B-coded translucent 5-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.34 mm²
