My Part Number:
Part Number: RSTS4-RKTS4-288/25M
Manufacturer Code: 89134
Multiples of: 1 | Minimum Order: 1

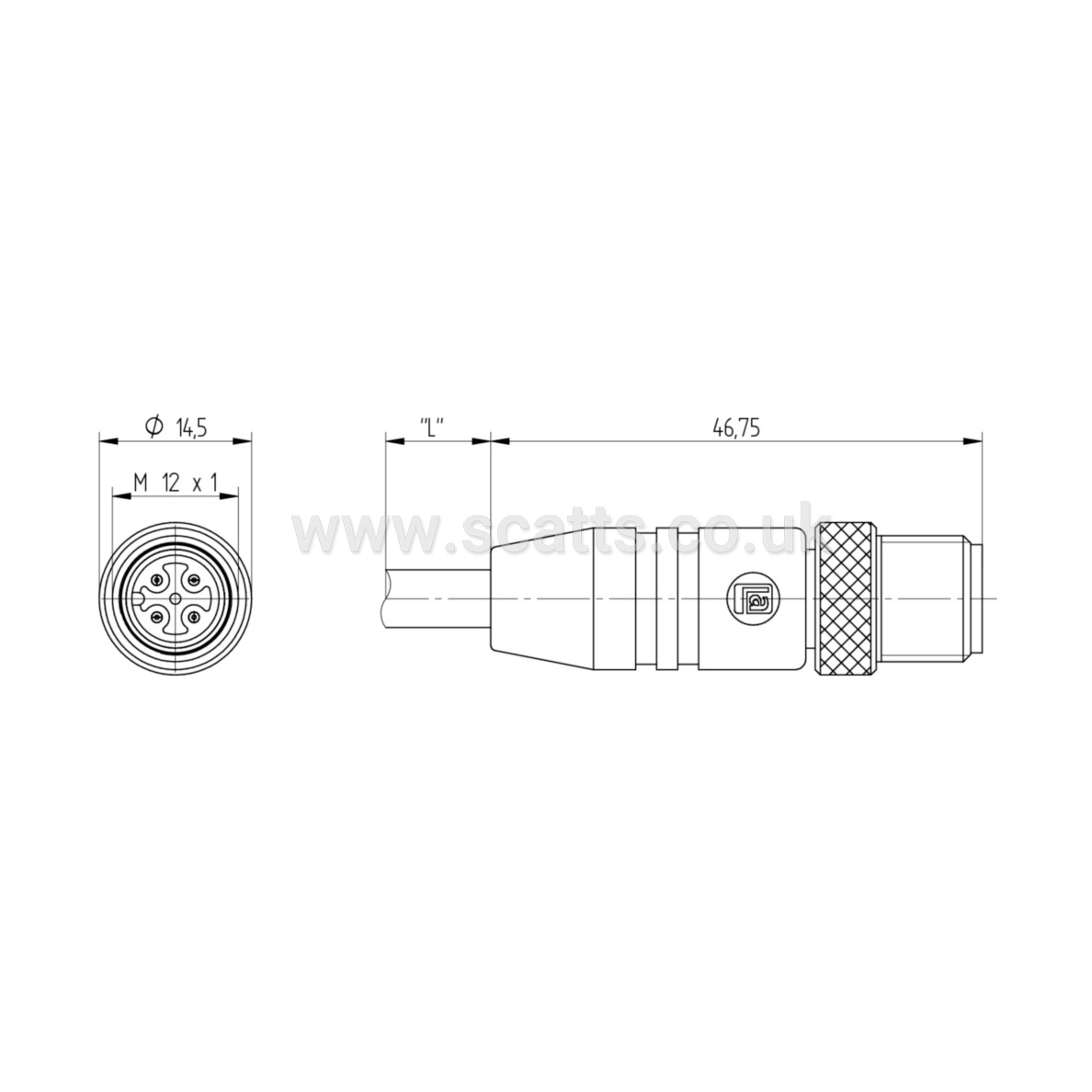

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 4-pin M12 Standard connector to female straight A-coded orange 4-pin M12 Standard connector, shielded, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP69K |
|
Approvals |
CE, UL - US Only, RoHS |
Additional Information |
Connector Material: Nickel Plated Brass |
|
Connection Method |
Coupling Screw |
|
Connection Method B |
Coupling Nut |
|
Connection Type |
Double End |
|
Connection Size |
M12 |
|
Voltage |
50 V AC, 60 V DC, 50 V AC, 60 V DC |
|
Number Of Pins |
4 - Four Pin |
|
Connection Pin Coding |
A |
|
Connection Gender |
Male |
|
Connection Orientation |
Straight |
|
Connection Size B |
M12 |
|
Connection Pin Coding B |
A |
|
Connection Gender B |
Female |
|
Connection Orientation B |
Straight |
|
Current Rating |
4 A |
|
Insulation Colour |
Black |
|
Insulation Material |
PUR |
|
Cable Length |
25 m |
|
Additional Features |
Shielded: Yes |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
90 °C |
£76.77
per 1 (ex. VAT)£92.12
per 1 (inc. VAT)Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 4-pin M12 Standard connector to female straight A-coded orange 4-pin M12 Standard connector, shielded, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm²
