My Part Number:
Part Number: WRKMV3-520/2M
Manufacturer Code: 934729001
Multiples of: 1 | Minimum Order: 1

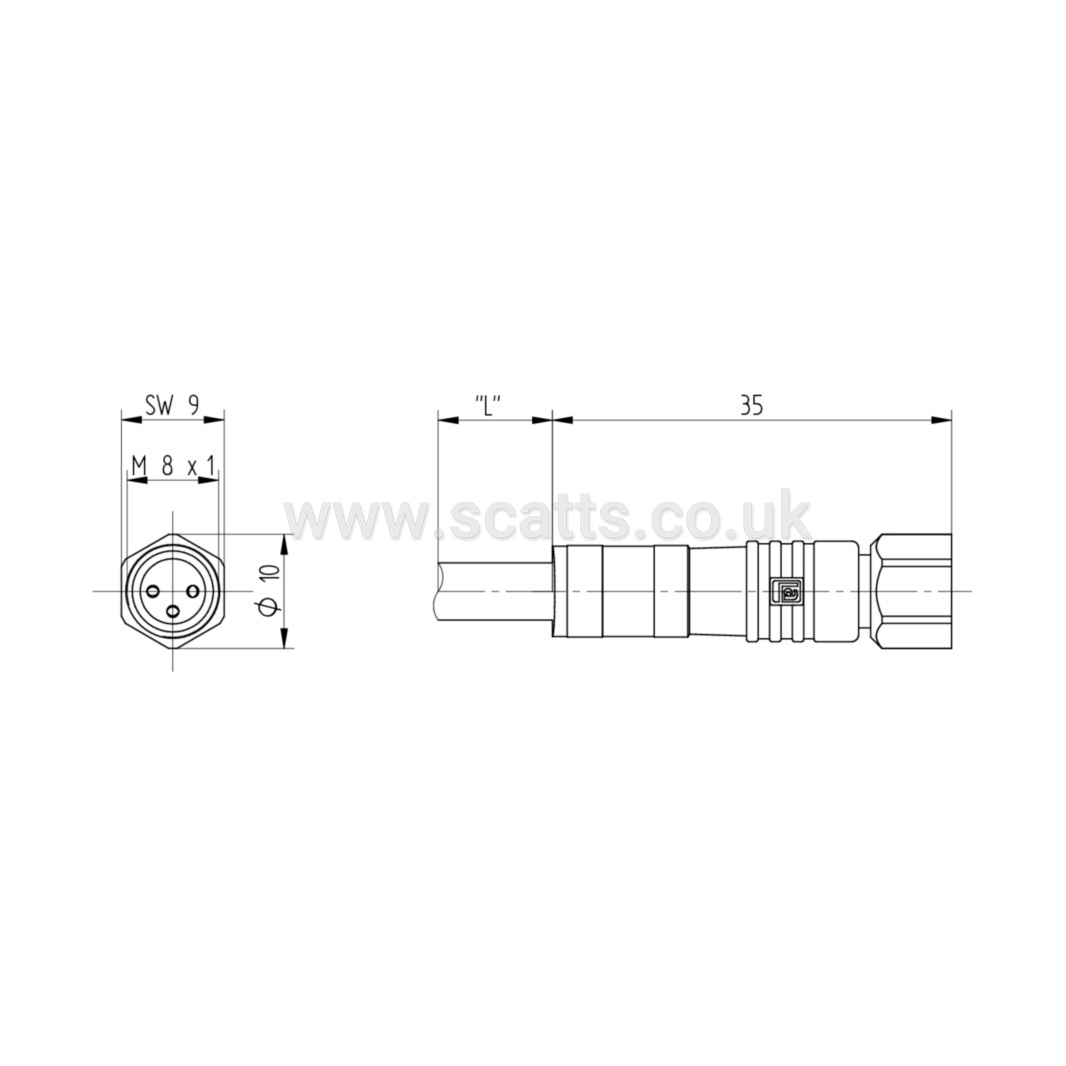

M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset: Female, straight, 3-pin, A-coded, white body, 50 V AC / 60 V DC, 4 A; TPE orange cable, 3-wires, 0.25 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP68, IP69K |
|
Approvals |
CE, RoHS |
Additional Information |
Connector Material: Stainless Steel |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M8 |
|
Voltage |
50 V AC, 60 V DC, 50 V AC, 60 V DC |
|
Number Of Pins |
3 - Three Pin |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Current Rating |
4 A |
|
Insulation Colour |
Orange |
|
Insulation Material |
TPE-V |
|
Cable Length |
2 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
105 °C |
|
IP68 Rating Method |
1 m for 24 hours |
|
£21.49
per 1 (ex. VAT)£25.79
per 1 (inc. VAT)M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset: Female, straight, 3-pin, A-coded, white body, 50 V AC / 60 V DC, 4 A; TPE orange cable, 3-wires, 0.25 mm²
Brand |
LUMBERG AUTOMATION |
|
IP Rating |
IP65, IP67, IP68, IP69K |
|
Approvals |
CE, RoHS |
Additional Information |
Connector Material: Stainless Steel |
|
Connection Method |
Coupling Nut |
|
Connection Method B |
Flying Lead |
|
Connection Type |
Single End |
|
Connection Size |
M8 |
|
Voltage |
50 V AC, 60 V DC, 50 V AC, 60 V DC |
|
Number Of Pins |
3 - Three Pin |
|
Connection Pin Coding |
A |
|
Connection Gender |
Female |
|
Connection Orientation |
Straight |
|
Current Rating |
4 A |
|
Insulation Colour |
Orange |
|
Insulation Material |
TPE-V |
|
Cable Length |
2 m |
|
Additional Features |
Shielded: No |
|
Minimum Ambient Temperature |
-40 °C |
|
Maximum Ambient Temperature |
105 °C |
|
IP68 Rating Method |
1 m for 24 hours |
|
