My Part Number:
Part Number: 01-N8015
Manufacturer Code: 01N8015
Multiples of: 1 | Minimum Order: 1

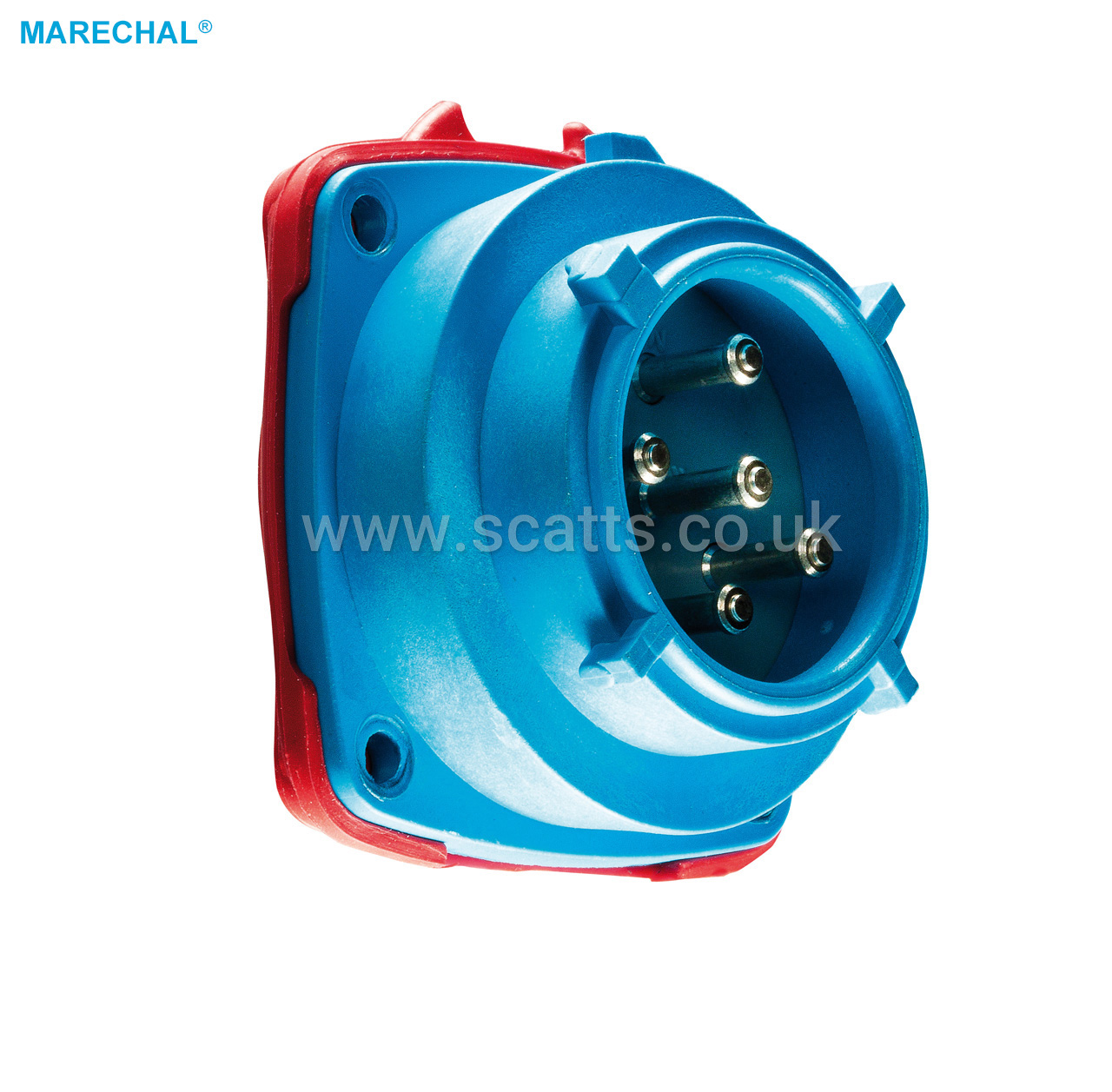

30 A – 500 V INDUSTRIAL PLUG & SOCKET-OUTLET- IP66/IP67 – IK09 – POLY
A sealed, compact and robust socket that meets all the requirements of aggressive environments (humidity, corrosion, pollution) in both industrial and road infrastructures. PN industrial plug & socket-outlets offer the same advantages as DECONTACTOR™: automatic sealing, dual voltage, corrosion resistance and a reliable connection thanks to MARECHAL® terminal technology. All this in a more compact volume.
Highlights
• Automatic IP66/IP67
• Poly or metal casing, IK09
• CEM (Metal)
• T °C : -40 °C / +60 °C
Brand |
MARECHAL |
|
Mounting Style |
Surface Mount |
|
IP Rating |
IP66, IP67 |
|
Body Material |
Polyamide |
|
Minimum Operating Temperature |
-40 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, EAC, UL - Canada & US, CSA, LCIE |
Connection Gender |
Male |
|
Voltage Rating |
250 V AC |
|
Current Rating |
30 A |
|
Colour |
Blue |
|
Body Type |
Straight |
|
Number Of Poles |
5P+N+E |
|
£34.15
per 1 (ex. VAT)£40.98
per 1 (inc. VAT)
30 A – 500 V INDUSTRIAL PLUG & SOCKET-OUTLET- IP66/IP67 – IK09 – POLY
A sealed, compact and robust socket that meets all the requirements of aggressive environments (humidity, corrosion, pollution) in both industrial and road infrastructures. PN industrial plug & socket-outlets offer the same advantages as DECONTACTOR™: automatic sealing, dual voltage, corrosion resistance and a reliable connection thanks to MARECHAL® terminal technology. All this in a more compact volume.
Highlights
• Automatic IP66/IP67
• Poly or metal casing, IK09
• CEM (Metal)
• T °C : -40 °C / +60 °C
Brand |
MARECHAL |
|
Mounting Style |
Surface Mount |
|
IP Rating |
IP66, IP67 |
|
Body Material |
Polyamide |
|
Minimum Operating Temperature |
-40 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, EAC, UL - Canada & US, CSA, LCIE |
Connection Gender |
Male |
|
Voltage Rating |
250 V AC |
|
Current Rating |
30 A |
|
Colour |
Blue |
|
Body Type |
Straight |
|
Number Of Poles |
5P+N+E |
|
