My Part Number:

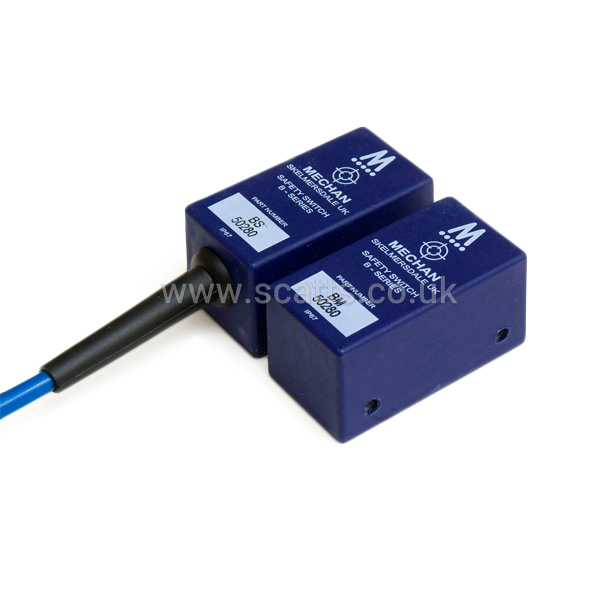

Part Number: BMS-05M
Manufacturer Code: 309.000
Multiples of: 1 | Minimum Order: 1
• Mid-sized electronic safety switch
• Fully encapsulated, IP67
• Pre-wired, 5, 10, 15 metre cable (Max 100m)
• Side entry cable

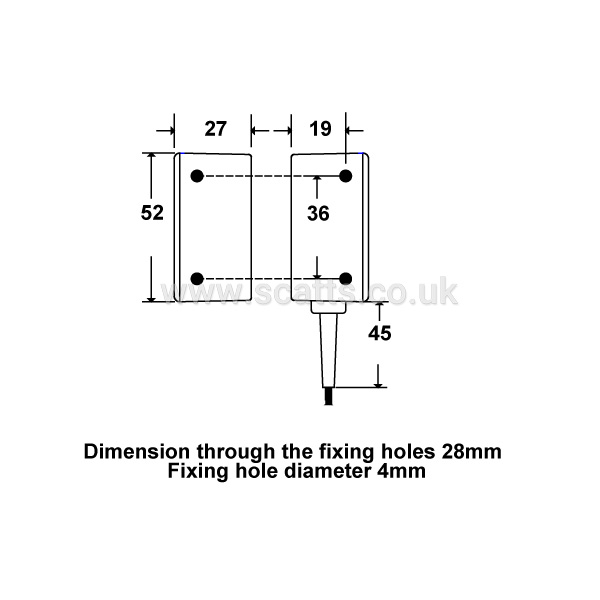

BMS are mid-sized electronic switches with the same robust design features as the F-Type safety switches, encapsulated in our smaller 52 x 27 x 25 ABS housing. Ideal for use on a range of guarding where the compact design helps in hiding or mounting the switches.
With 4mm pre-drilled fixing holes directly through the body of the switch, and the same consistent 10mm switching, even when mounted on metal frames, these B-Type switches offer easy fitting and long term reliability.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US |
Cable Length |
5 m |
|
£89.00
per 1 (ex. VAT)£106.80
per 1 (inc. VAT)
