My Part Number:
Part Number: CX2
Manufacturer Code: 321.001
Multiples of: 1 | Minimum Order: 1
• Dual safety switch extender module
• LED and volt free contact indication
• 35mm DIN rail mounting

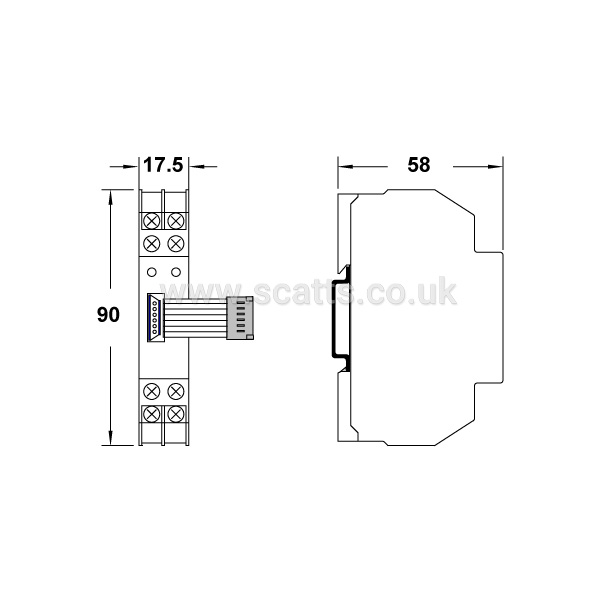

• 17.5 mm wide

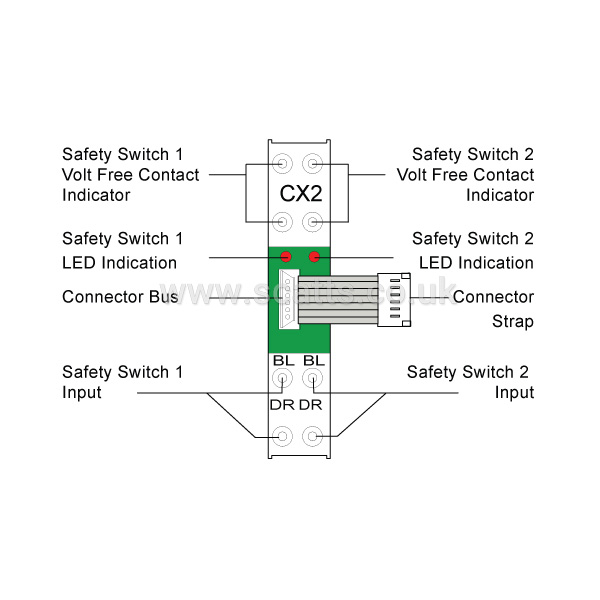

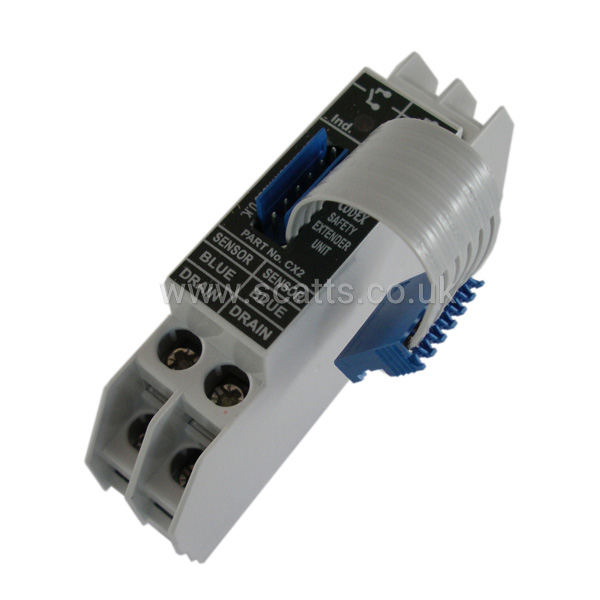

The CX2 extender module adds two safety switch inputs to a CODEX safety system. Connects via a built in 6-way strap to the adjacent CM1 control module (or extender module) and has the indication output, LED and volt free contact, for each switch.
NOTE. A CX2 must have 2 Mechan safety switches connected to it to operate.
Brand |
MECHAN CONTROLS |
|
£151.20
per 1 (ex. VAT)£181.44
per 1 (inc. VAT)
• Dual safety switch extender module
• LED and volt free contact indication
• 35mm DIN rail mounting
• 17.5 mm wide
The CX2 extender module adds two safety switch inputs to a CODEX safety system. Connects via a built in 6-way strap to the adjacent CM1 control module (or extender module) and has the indication output, LED and volt free contact, for each switch.
NOTE. A CX2 must have 2 Mechan safety switches connected to it to operate.
