My Part Number:
Part Number: ESM
Manufacturer Code: 330.006
Multiples of: 1 | Minimum Order: 1
• Emergency stop button input
• Dual channel volt free contact
• LED and Volt Free Contact Indication
• 35mm DIN Rail Mounting
• 17.5 mm wide

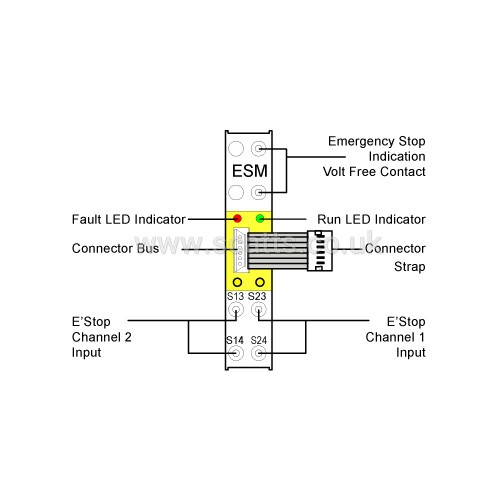

The ESM module gives the option to add emergency stop button control to the F-Series Safety System and maintain CAT4 SIL3 PLe performance. The ESM connects via a built in 6-way strap to the adjacent F Series module. The ESM accepts 2 closed contact inputs from either an emergency stop button or mechanical safety switch (locking or non-locking) Indicator LED’s on the ESM provide diagnostic information along with volt free contact status indicator.
Brand |
MECHAN CONTROLS |
|
£115.40
per 1 (ex. VAT)£138.48
per 1 (inc. VAT)
• Emergency stop button input
• Dual channel volt free contact
• LED and Volt Free Contact Indication
• 35mm DIN Rail Mounting
• 17.5 mm wide
The ESM module gives the option to add emergency stop button control to the F-Series Safety System and maintain CAT4 SIL3 PLe performance. The ESM connects via a built in 6-way strap to the adjacent F Series module. The ESM accepts 2 closed contact inputs from either an emergency stop button or mechanical safety switch (locking or non-locking) Indicator LED’s on the ESM provide diagnostic information along with volt free contact status indicator.
Brand |
MECHAN CONTROLS |
|
