My Part Number:
Part Number: FM1-024AC
Manufacturer Code: 327.001
Multiples of: 1 | Minimum Order: 1
• Master control module
• 24Vac
• LED diagnostics
• Dual Channel Output
• Automatic/manual-monitored reset

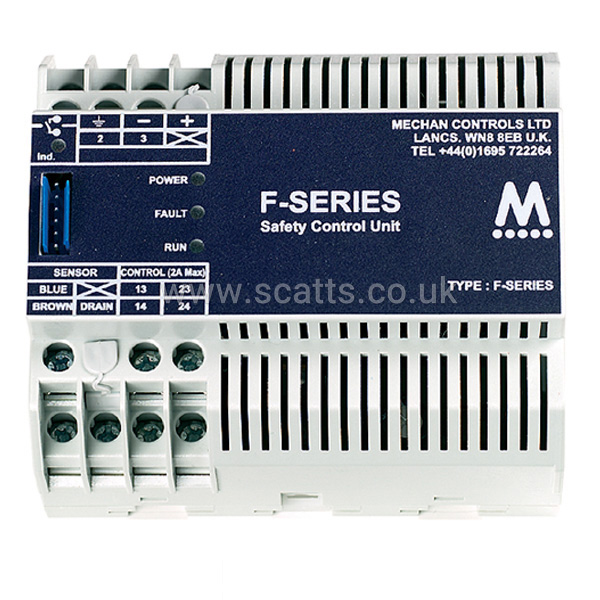

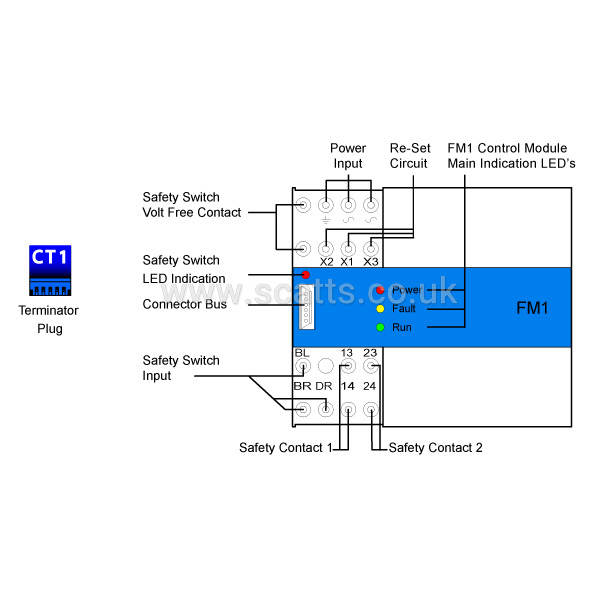

The FM1 is the master control module for each F Series safety system. The FM1 provides 2 NO force guided contact safety outputs, internal and external relay monitoring circuit, LED system indication and the dynamic signal input for one Mechan safety switch sensor.
The FM1 can be ordered to operate with 24Vdc, 24Vac, 110Vac or 240Vac supply.
Brand |
MECHAN CONTROLS |
|
£242.50
per 1 (ex. VAT)£291.00
per 1 (inc. VAT)
• Master control module
• 24Vac
• LED diagnostics
• Dual Channel Output
• Automatic/manual-monitored reset
The FM1 is the master control module for each F Series safety system. The FM1 provides 2 NO force guided contact safety outputs, internal and external relay monitoring circuit, LED system indication and the dynamic signal input for one Mechan safety switch sensor.
The FM1 can be ordered to operate with 24Vdc, 24Vac, 110Vac or 240Vac supply.
