My Part Number:
Part Number: FX2
Manufacturer Code: 328.001
Multiples of: 1 | Minimum Order: 1
• Dual safety switch extender module
• LED and volt free contact indication
• 35mm DIN rail mounting

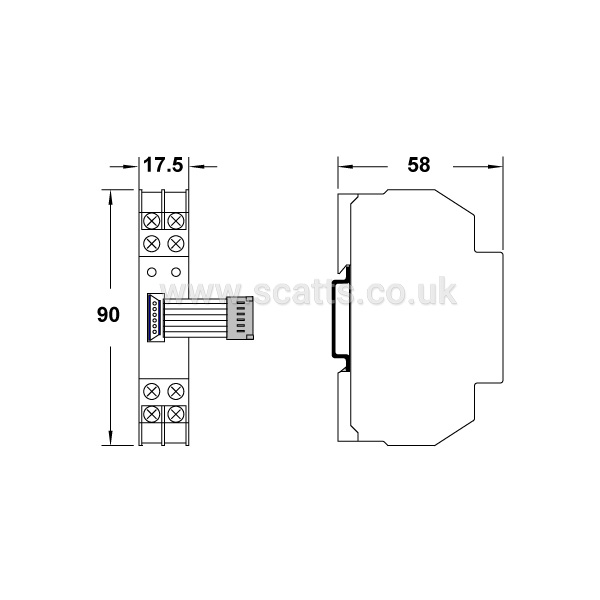

• 17.5 mm wide

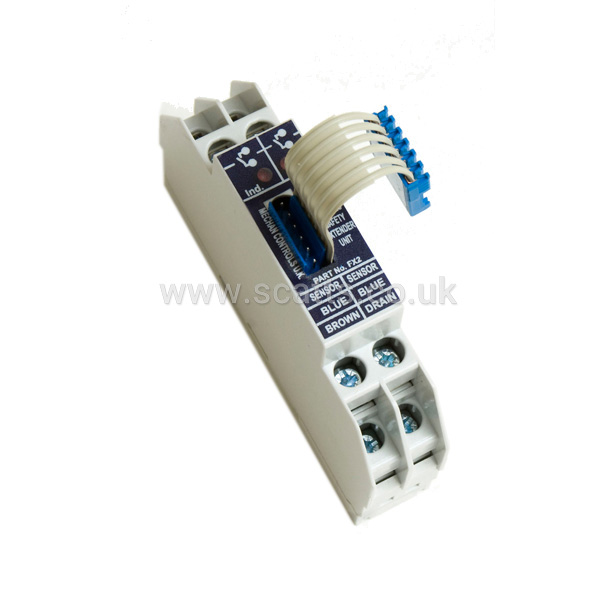

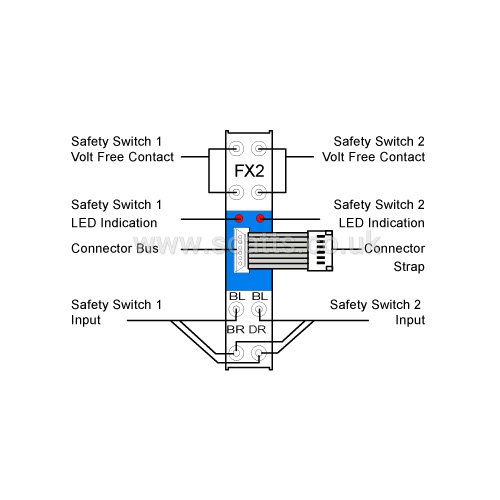

The FX2 extender module adds two safety switch inputs to a F-Series safety system. Connects via a built in 6-way strap to the adjacent FM1 control module (or extender module) and has the indication output, LED and volt free contact, for each switch.
NOTE. An FX2 must have 2 Mechan safety switches connected to it to operate.
Brand |
MECHAN CONTROLS |
|
£130.40
per 1 (ex. VAT)£156.48
per 1 (inc. VAT)
• Dual safety switch extender module
• LED and volt free contact indication
• 35mm DIN rail mounting
• 17.5 mm wide
The FX2 extender module adds two safety switch inputs to a F-Series safety system. Connects via a built in 6-way strap to the adjacent FM1 control module (or extender module) and has the indication output, LED and volt free contact, for each switch.
NOTE. An FX2 must have 2 Mechan safety switches connected to it to operate.
Brand |
MECHAN CONTROLS |
|
