My Part Number:

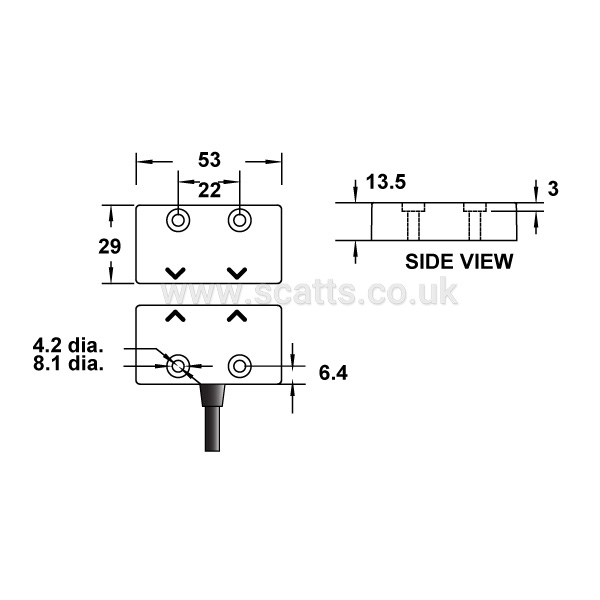

Part Number: HE1-SS-20-DC-03M
Manufacturer Code: 341.006
Multiples of: 1 | Minimum Order: 1
• Coded magnetic operation, Stainless Steel housing
• 2 normally open + 1 normally closed output
• Solid state bi-directional outputs
• 24vDC operation
• LED indication
The HE safety switches have up to 2 x N/O + 1 N/C bidirectional solid state outputs along with a built in LED(s) for indication. When installed on a machine guard, power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open.
The HE safety switches are fully encapsulated into a 316 grade stainless steel housing and available with 3, 6 or 10 metre pre-wired cable. With a 7mm switching distance the actuator can approach the switch from most angles. When the switch is closed the targets on the printed face of the switch must be aligned.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|
Body Material |
316 Stainless Steel |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Switching Voltage |
24 V DC |
|
Switching Current |
400 mA |
|
Supply Voltage |
24 V DC |
|
Actuator |
Non-Contact - Coded Magnet |
|
Safety Contacts |
2 N/C |
|
Cable Length |
3 m |
|
Minimum Sensing Range |
7 mm |
|
Maximum Sensing Range |
12 mm |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£83.30
per 1 (ex. VAT)£99.96
per 1 (inc. VAT)
