Part Number: HE3-SS-21-DC-06M
Manufacturer Code: 344.001
Multiples of: 1 | Minimum Order: 1
• Coded magnetic operation, Stainless Steel housing
• 2 normally open + 1 normally closed output
• Solid state bi-directional outputs
• 24V dc operation
• LED indication
• Face to Face Operation
The HE safety switches have up to 2 x N/O + 1 N/C bidirectional solid state outputs along with a built in LED(s) for indication. When installed on a machine guard, power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open.
The HE safety switches are fully encapsulated into a 316 grade stainless steel housing and available with 3, 6 or 10 metre pre-wired cable. With a 7mm switching distance the actuator can approach the switch from most angles. When the switch is closed the targets on the printed face of the switch must be aligned.

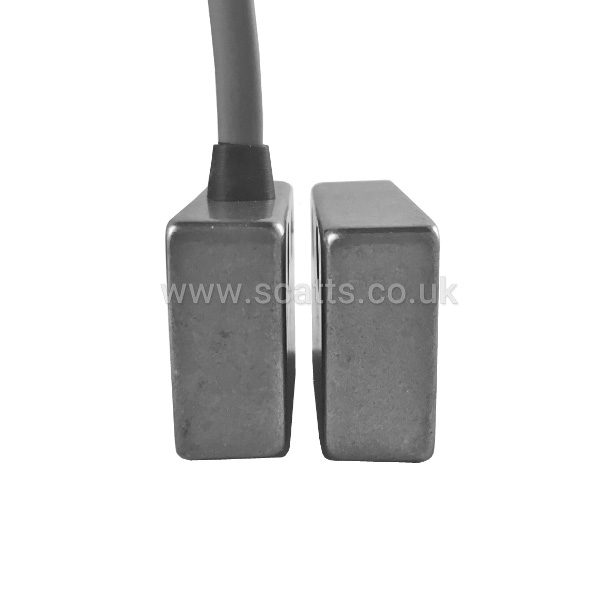

The HE3 is designed to operate face to face enabling easy installation in small spaces.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

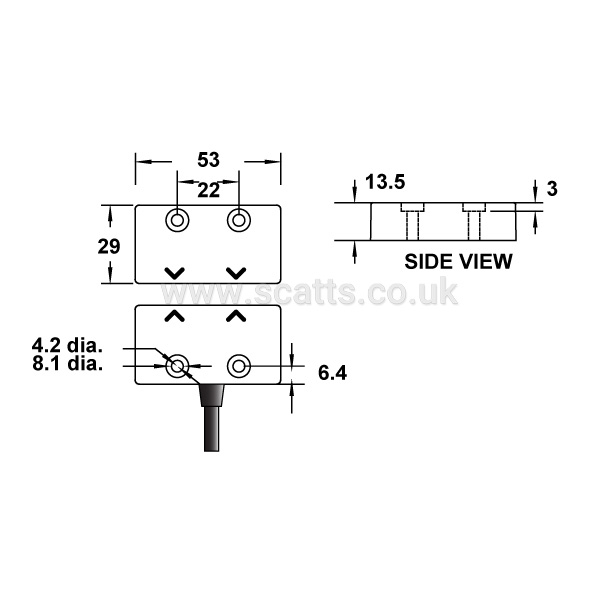

Height |
29 mm |
|
Width |
53 mm |
|
Depth |
13.5 mm |
Body Material |
316 Stainless Steel |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Switching Voltage |
24 V DC |
|
Switching Current |
400 mA |
|
Supply Voltage |
24 V DC |
|
Actuator |
Non-Contact - Coded Magnet |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
6 m |
|
Minimum Sensing Range |
7 mm |
|
Maximum Sensing Range |
12 mm |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£101.90
per 1 (ex. VAT)£122.28
per 1 (inc. VAT)
