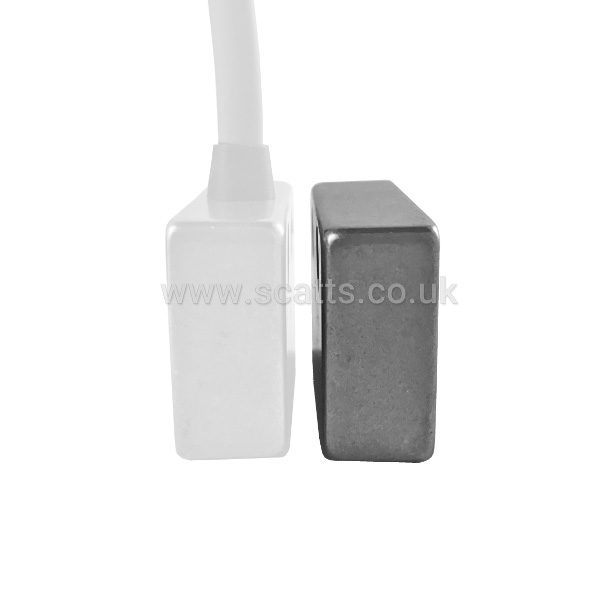

HE3-SS ACTUATOR ONLY

*** ACTUATOR ONLY ***

• Coded magnetic operation, Stainless Steel housing
• 2 normally open + 1 normally closed output
• Solid state bi-directional outputs
• 24V dc operation
• LED indication
• Face to Face Operation

The HE safety switches have up to 2 x N/O + 1 N/C bidirectional solid state outputs along with a built in LED(s) for indication. When installed on a machine guard, power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open.

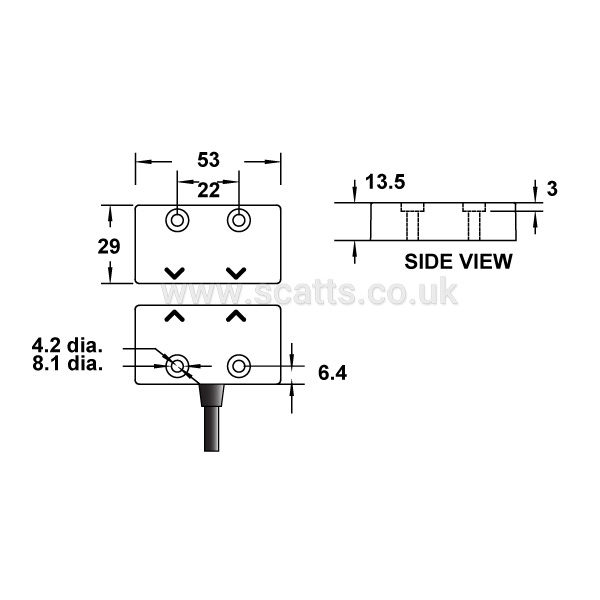

The HE safety switches are fully encapsulated into a 316 grade stainless steel housing and available with 3, 6 or 10 metre pre-wired cable. With a 7mm switching distance the actuator can approach the switch from most angles. When the switch is closed the targets on the printed face of the switch must be aligned.
