MS1-10-AC-03M
MS1-10-AC-03M
MS1-10-AC-03M
MS1-10-AC-03M
MS1-10-AC-03M
MS1-10-AC-03M
MS1-10-AC-03M
MS1-10-AC-03M

MAGNETIC SW 1 N/C AC 3M CABLE

My Part Number:

Part Number: MS1-10-AC-03M

Manufacturer Code: 350.000

Multiples of: 1 | Minimum Order: 1

View Technical Documents
CE
CULUS
UL
Currently out of stock - available to back order

• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching
• Fully Sealed IP67

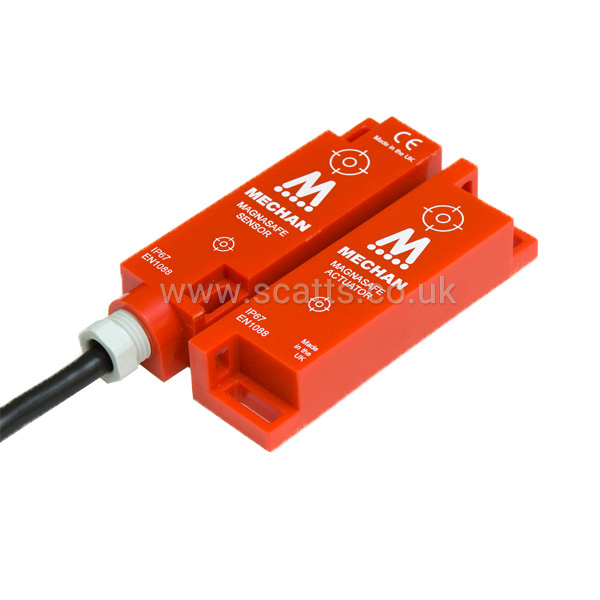

The Magnasafe MS1 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS1 safety switches are easy to install, tolerant to misalignment. With an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.

There are currently no videos available for this product
Brand
MECHAN CONTROLS
Electrical Connection
Pre-Cabled

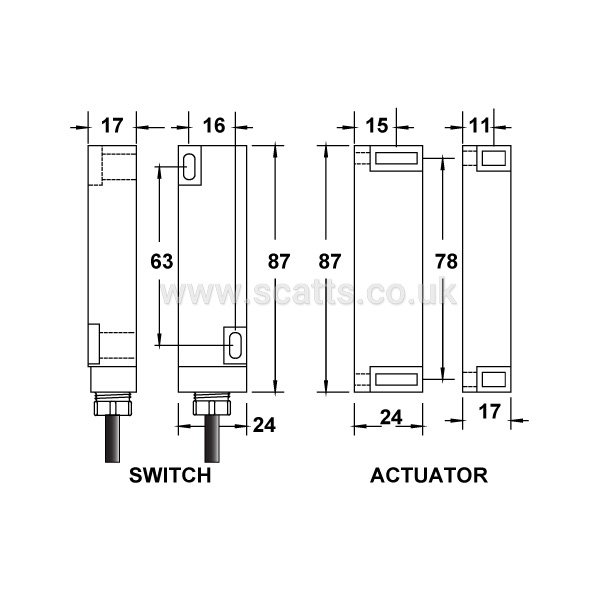

Height
87 mm
Width
24 mm
Depth
17 mm
IP Rating
IP67
Body Material
ABS Plastic
Minimum Operating Temperature
-10 °C
Maximum Operating Temperature
55 °C
Approvals
CE, UL - Canada & US, UL - US Only
Switching Voltage
230 V AC
Switching Current
2 A
Actuator
Non-Contact - Uncoded Magnet
Safety Contacts
1 N/C
Cable Length
3 m
Minimum Sensing Range
10 mm
Maximum Sensing Range
25 mm

£95.30

per 1 (ex. VAT)

£114.36

per 1 (inc. VAT)
Quantity:
add to list

• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching
• Fully Sealed IP67


The Magnasafe MS1 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS1 safety switches are easy to install, tolerant to misalignment. With an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.

There are currently no videos available for this product
Brand
MECHAN CONTROLS
Electrical Connection
Pre-Cabled
Height
87 mm
Width
24 mm
Depth
17 mm
IP Rating
IP67
Body Material
ABS Plastic
Minimum Operating Temperature
-10 °C
Maximum Operating Temperature
55 °C
Approvals
CE, UL - Canada & US, UL - US Only
Switching Voltage
230 V AC
Switching Current
2 A
Actuator
Non-Contact - Uncoded Magnet
Safety Contacts
1 N/C
Cable Length
3 m
Minimum Sensing Range
10 mm
Maximum Sensing Range
25 mm
