My Part Number:
Part Number: MS1-21-AC-03M
Manufacturer Code: 350.003
Multiples of: 1 | Minimum Order: 1
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching
• Fully Sealed IP67

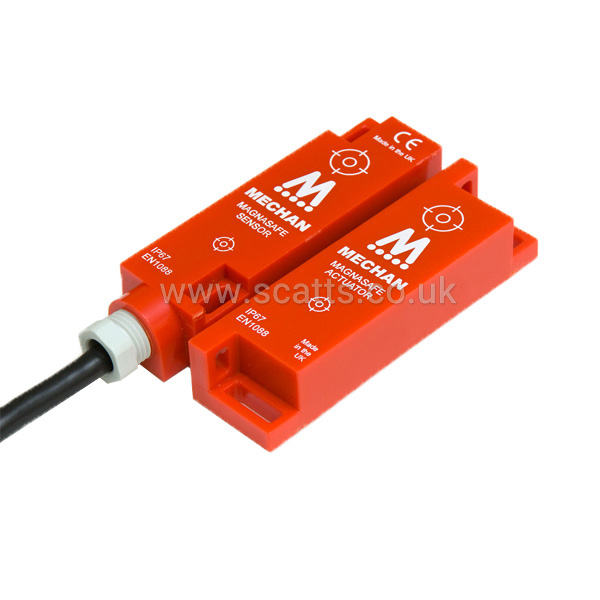

The Magnasafe MS1 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS1 safety switches are easy to install, tolerant to misalignment. With an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

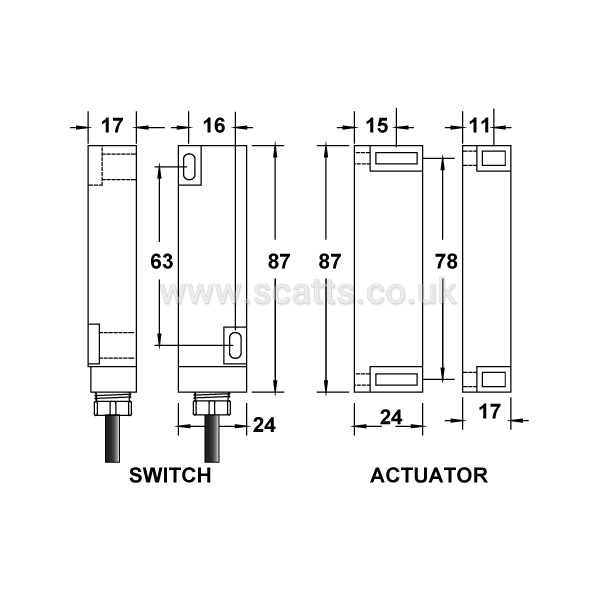

Height |
87 mm |
|
Width |
24 mm |
|
Depth |
17 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, UL - US Only |
Switching Voltage |
230 V AC |
|
Switching Current |
2 A |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
3 m |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
25 mm |
|
£186.30
per 1 (ex. VAT)£223.56
per 1 (inc. VAT)
