Part Number: MS21-11-AC-03M
Manufacturer Code: 359.006
Multiples of: 1 | Minimum Order: 1
• Max contacts 2 safety 1 auxiliary
• Contact rating 2Amp 230VAC / 1Amp 24VDC
• Pre-wired 3 metre cable
• 10mm switching
• ABS housing, fully sealed IP67

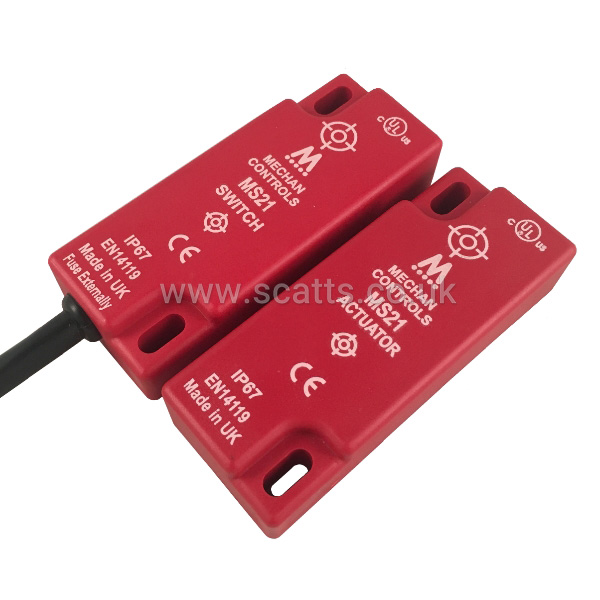

The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. Easy to install, tolerant to misalignment ,the non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

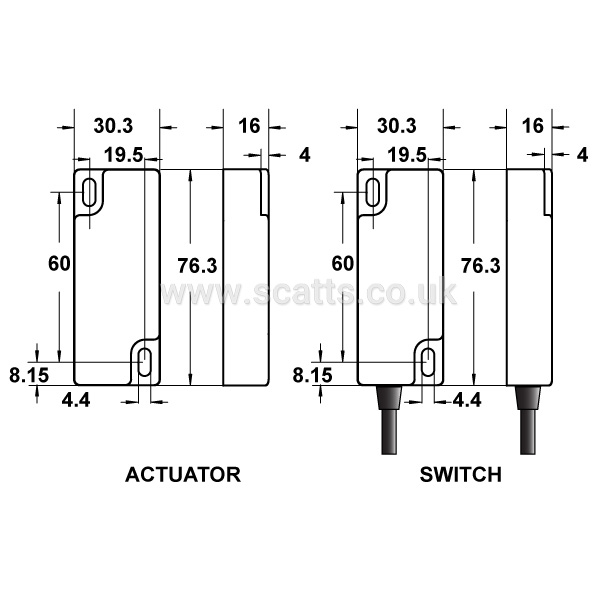

Height |
76.2 mm |
|
Width |
30.3 mm |
|
Depth |
16 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-10 °C, -25 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US |
Switching Voltage |
230 V AC |
|
Switching Current |
1 A |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
1 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
3 m |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
28 mm |
|
SIL Rating |
SIL1 |
|
Performance Level |
PLc |
|
£83.60
per 1 (ex. VAT)£100.32
per 1 (inc. VAT)
