MS21-20-AC-06M
MS21-20-AC-06M
MS21-20-AC-06M
MS21-20-AC-06M
MS21-20-AC-06M
MS21-20-AC-06M
MS21-20-AC-06M
MS21-20-AC-06M

MS21 SAFETY SW.2NO 6M

My Part Number:

Part Number: MS21-20-AC-06M

Manufacturer Code: 359.009

Multiples of: 1 | Minimum Order: 1

View Technical Documents
CE
CULUS
Currently out of stock - available to back order

• Max contacts 2 safety 1 auxiliary
• Contact rating 2Amp 230VAC / 1Amp 24VDC
• Pre-wired 6 metre cable
• 10mm switching
• ABS housing, fully sealed IP67

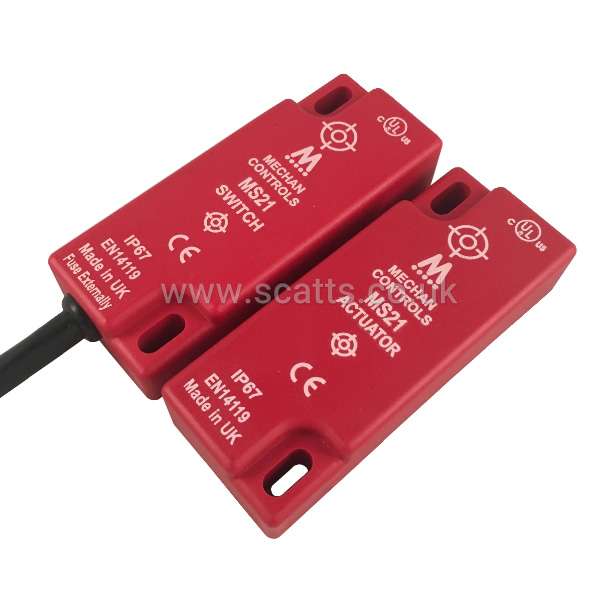

The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. Easy to install, tolerant to misalignment ,the non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.

There are currently no videos available for this product
Brand
MECHAN CONTROLS
Electrical Connection
Pre-Cabled

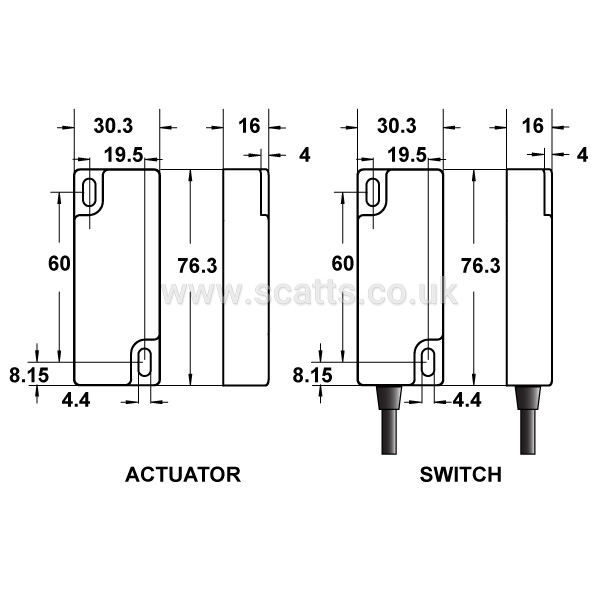

Height
76.2 mm
Width
30.3 mm
Depth
16 mm
IP Rating
IP67
Body Material
ABS Plastic
Minimum Operating Temperature
-10 °C, -25 °C
Maximum Operating Temperature
55 °C
Approvals
CE, UL - Canada & US
Switching Voltage
230 V AC
Switching Current
1 A
Actuator
Non-Contact - Uncoded Magnet
Safety Contacts
2 N/C
Cable Length
6 m
Minimum Sensing Range
10 mm
Maximum Sensing Range
28 mm
SIL Rating
SIL3
Performance Level
PLe

£96.20

per 1 (ex. VAT)

£115.44

per 1 (inc. VAT)
Quantity:
add to list

• Max contacts 2 safety 1 auxiliary
• Contact rating 2Amp 230VAC / 1Amp 24VDC
• Pre-wired 6 metre cable
• 10mm switching
• ABS housing, fully sealed IP67

The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. Easy to install, tolerant to misalignment ,the non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.

There are currently no videos available for this product
Brand
MECHAN CONTROLS
Electrical Connection
Pre-Cabled
Height
76.2 mm
Width
30.3 mm
Depth
16 mm
IP Rating
IP67
Body Material
ABS Plastic
Minimum Operating Temperature
-10 °C, -25 °C
Maximum Operating Temperature
55 °C
Approvals
CE, UL - Canada & US
Switching Voltage
230 V AC
Switching Current
1 A
Actuator
Non-Contact - Uncoded Magnet
Safety Contacts
2 N/C
Cable Length
6 m
Minimum Sensing Range
10 mm
Maximum Sensing Range
28 mm
SIL Rating
SIL3
Performance Level
PLe
