My Part Number:
Part Number: MS21-21-DC-QD
Manufacturer Code: 359.027
Multiples of: 1 | Minimum Order: 1
• Max contacts 2 safety 1 auxiliary
• Contact rating 2Amp 230VAC / 1Amp 24VDC
• 10mm switching
• ABS housing, fully sealed IP67
• M12 connector

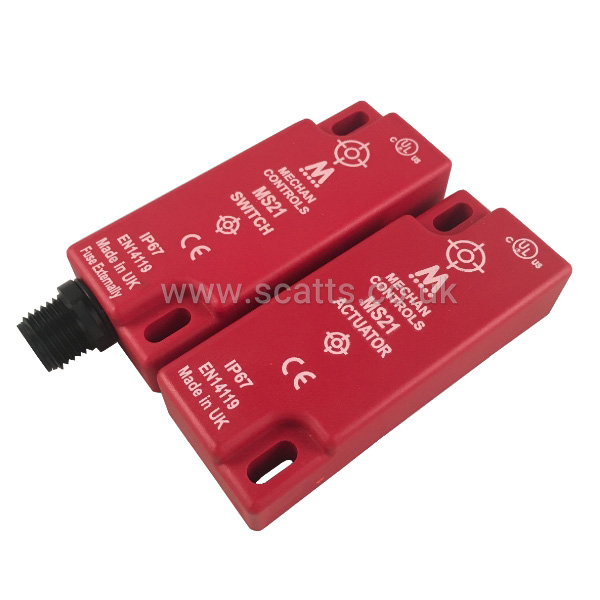

The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. With an M12 connector in the switch making them even easier to install, the MS21 safety switches are tolerant to misalignment, the 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
M12 |
|

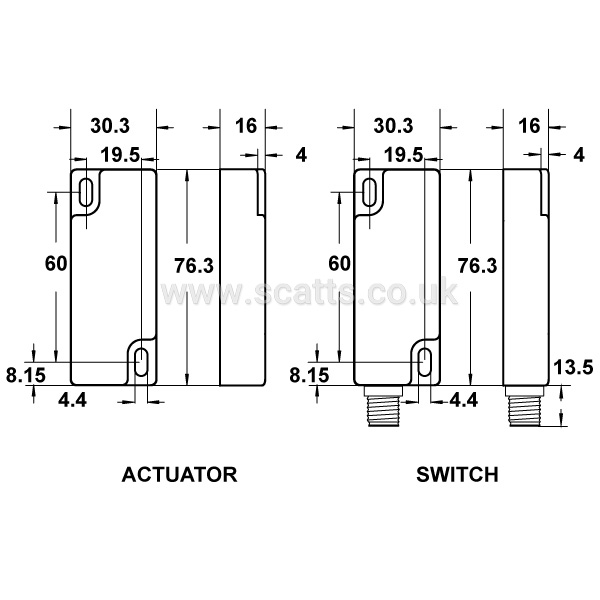

Height |
76.2 mm |
|
Width |
30.3 mm |
|
Depth |
16 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-10 °C, -25 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US |
Number Of Pins |
6 |
|
Switching Voltage |
24 V DC |
|
Switching Current |
2 A |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
28 mm |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£138.40
per 1 (ex. VAT)£166.08
per 1 (inc. VAT)
