My Part Number:
Part Number: MS3-20-DC-03M
Manufacturer Code: 352.052
Multiples of: 1 | Minimum Order: 1
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching
• M30 Housing
• Fully Sealed IP67

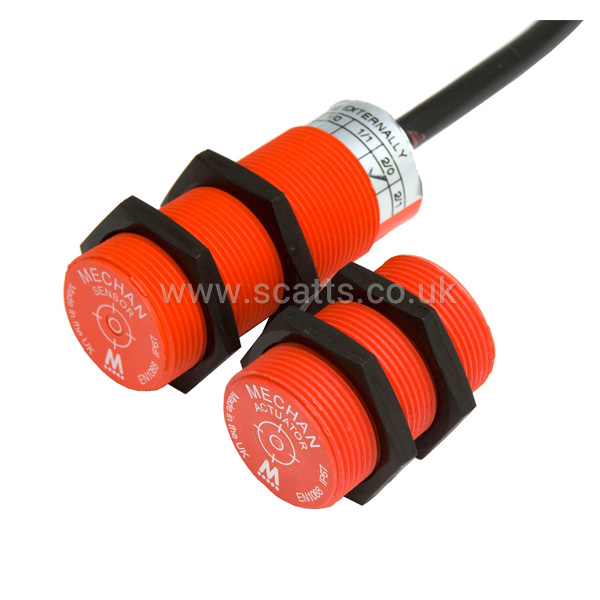

The Magnasafe MS3 are ‘barrel’ mounted magnetically operated safety switches. Encapsulated into M30 dia. housings, these safety switches are easy to install, and adjust and are tolerant to misalignment. With a 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

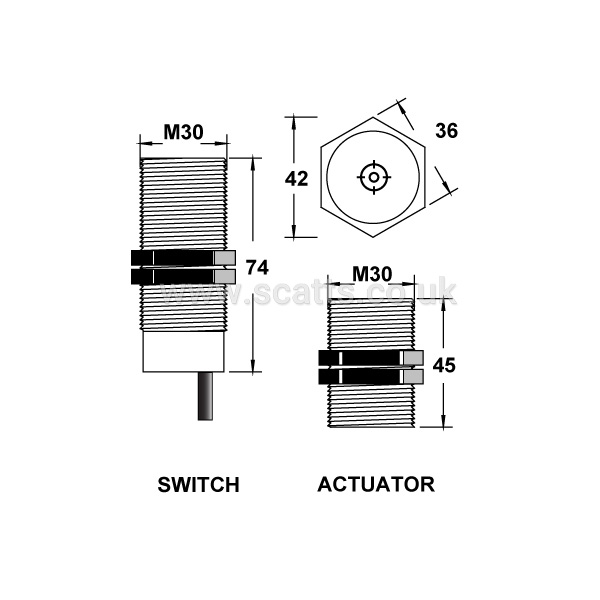

Height |
74 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US |
Switching Voltage |
24 V DC |
|
Switching Current |
1 A |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
2 N/C |
|
Cable Length |
3 m |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
35 mm |
|
Body Diameter |
30 mm |
|
£119.40
per 1 (ex. VAT)£143.28
per 1 (inc. VAT)
