Part Number: MS4-ACT
Manufacturer Code: 353.099
Multiples of: 1 | Minimum Order: 1
*** ACTUATOR ONLY ***
• Max Contacts 1 Safety 1 Auxiliary
• Contact Rating 2Amp 110VAC / 1Amp 24VDC
• 10mm Switching
• Compact housing, 22mm Fixing
• Fully Sealed IP67

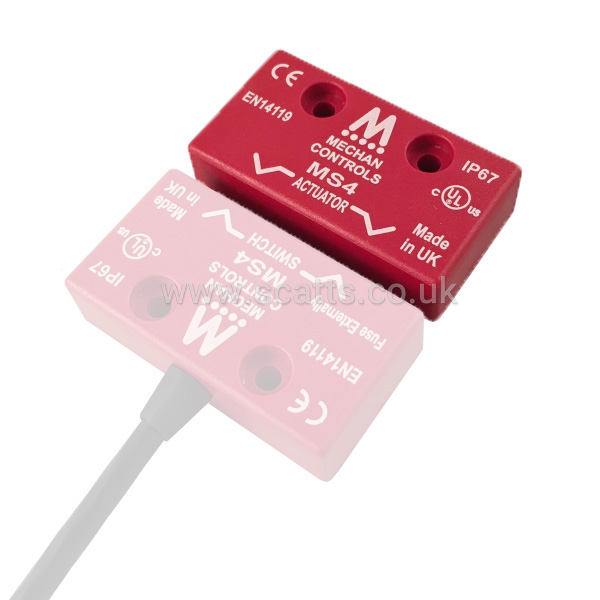

The Magnasafe MS4 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS4 safety switches have a 10 mm switching distance, are easy to install and tolerant to misalignment, ensuring a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Accessory Type |
Spare Actuator |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
£17.00
per 1 (ex. VAT)£20.40
per 1 (inc. VAT)
*** ACTUATOR ONLY ***
• Max Contacts 1 Safety 1 Auxiliary
• Contact Rating 2Amp 110VAC / 1Amp 24VDC
• 10mm Switching
• Compact housing, 22mm Fixing
• Fully Sealed IP67
The Magnasafe MS4 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS4 safety switches have a 10 mm switching distance, are easy to install and tolerant to misalignment, ensuring a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Accessory Type |
Spare Actuator |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
