My Part Number:
Part Number: MS5-21-DC-10M
Manufacturer Code: 354.061
Multiples of: 1 | Minimum Order: 1
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 0.3Amp / 24VDC
• Min 7mm Switching
• Compact housing, 22mm Fixing
• Fully Sealed IP67

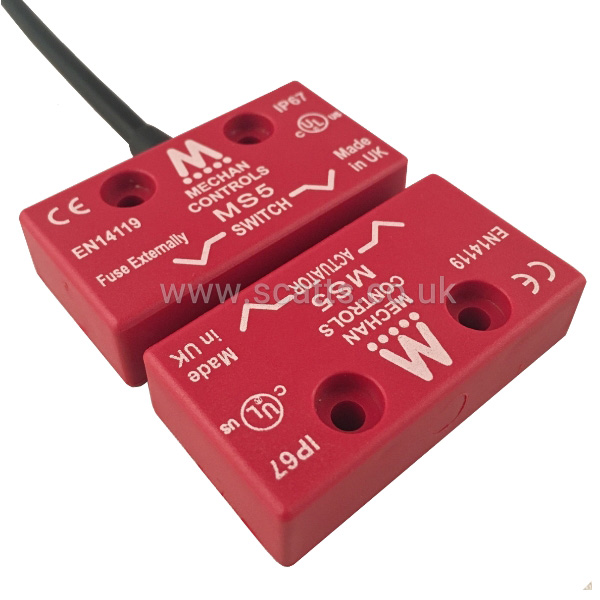

The MAGNASAFE MS5 are compact, non-contact safety switches designed for use with modern safety relays. Encapsulated into red ABS housings, the MS5 safety switches are easy to install and have a 7 – 10 mm switching distance, making them tolerant to misalignment and helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

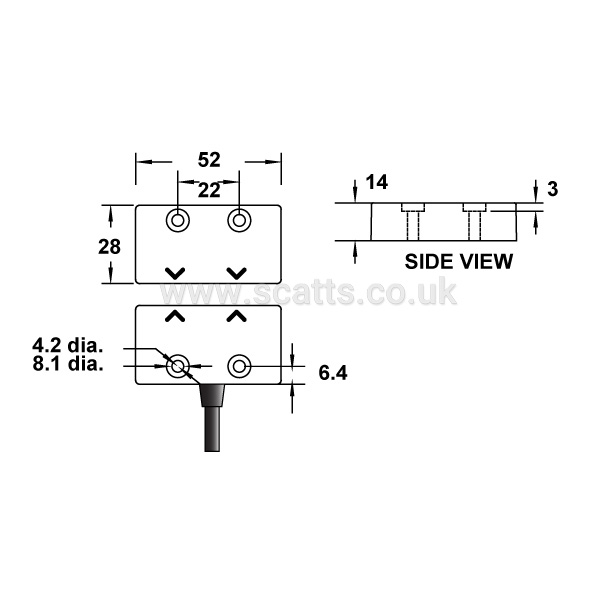

Height |
28 mm |
|
Width |
52 mm |
|
Depth |
14 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-10 °C, -25 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
10 m |
|
Minimum Sensing Range |
7 mm |
|
Maximum Sensing Range |
17 mm |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£65.50
per 1 (ex. VAT)£78.60
per 1 (inc. VAT)
