MS6-21-AC-QD
MS6-21-AC-QD
MS6-21-AC-QD
MS6-21-AC-QD
MS6-21-AC-QD
MS6-21-AC-QD
MS6-21-AC-QD
MS6-21-AC-QD

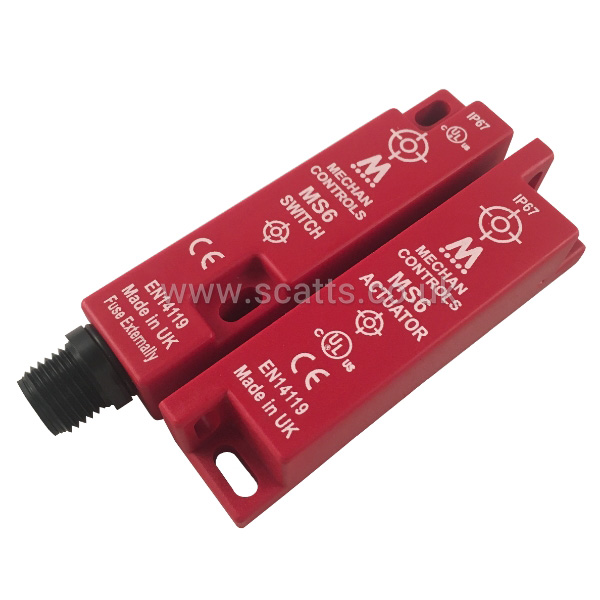

MS6 SAFETY SW.2NO/1NC PLUG-IN

My Part Number:

Part Number: MS6-21-AC-QD

Manufacturer Code: 356.023

Multiples of: 1 | Minimum Order: 1

View Technical Documents
CE
CULUS
Currently out of stock - available to back order

• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• M12 Quick Disconnect
• 10mm Switching
• Slim-line ABS Housing, Fully Sealed IP67


The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.

There are currently no videos available for this product
Brand
MECHAN CONTROLS
Electrical Connection
M12

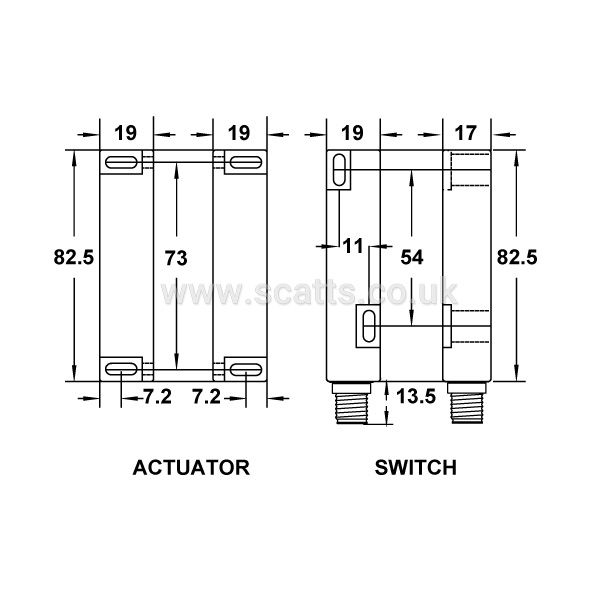

Height
82.5 mm
Width
19 mm
Depth
17 mm
IP Rating
IP67, IP69K
Body Material
ABS
Minimum Operating Temperature
-10 °C
Maximum Operating Temperature
55 °C
Approvals
CE, UL - Canada & US
Switching Voltage
230 V AC
Switching Current
2 A
Actuator
Non-Contact - Uncoded Magnet
Safety Contacts
2 N/C
Auxiliary Contacts
1 N/O
Minimum Sensing Range
10 mm
Maximum Sensing Range
28 mm
SIL Rating
SIL3
Performance Level
PLe

£133.50

per 1 (ex. VAT)

£160.20

per 1 (inc. VAT)
Quantity:
add to list

• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• M12 Quick Disconnect
• 10mm Switching
• Slim-line ABS Housing, Fully Sealed IP67


The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.
