My Part Number:
Part Number: MS6-ACT
Manufacturer Code: 356.098
Multiples of: 1 | Minimum Order: 1
*** ACTUATOR ONLY ***
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching
• Slim-line ABS Housing, Fully Sealed IP67

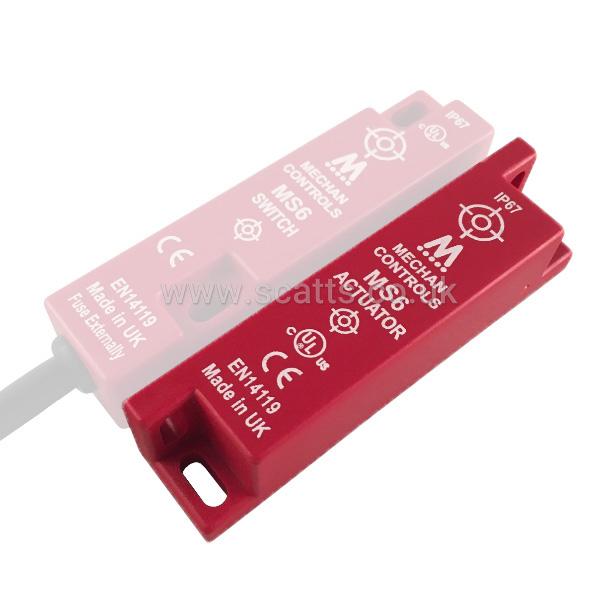

The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS stainless steel housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|

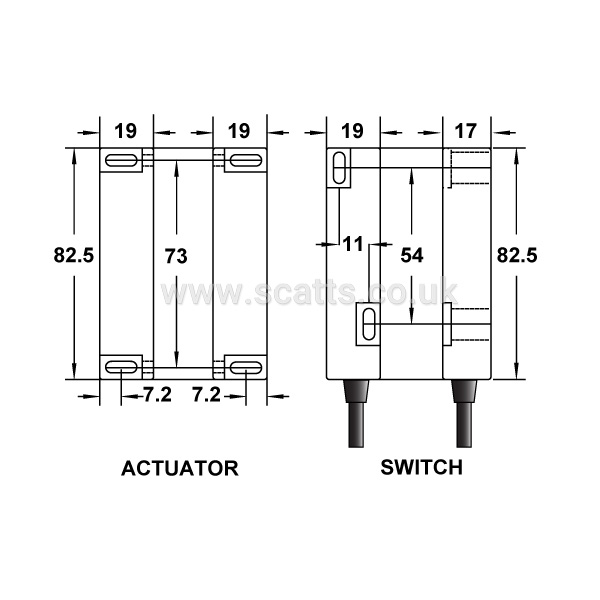

Height |
82.5 mm |
|
Width |
19 mm |
|
Depth |
17 mm, 19 mm |
|
IP Rating |
IP67, IP69K |
|
Body Material |
ABS |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US |
Accessory Type |
Spare Actuator |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
28 mm |
|
£22.70
per 1 (ex. VAT)£27.24
per 1 (inc. VAT)
