My Part Number:
Part Number: MS7-11-DC-10M
Manufacturer Code: 357.010
Multiples of: 1 | Minimum Order: 1
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 0.3Amp 24VDC
• 7mm Switching
• ABS Euro Standard Housing
• Fully Sealed IP67

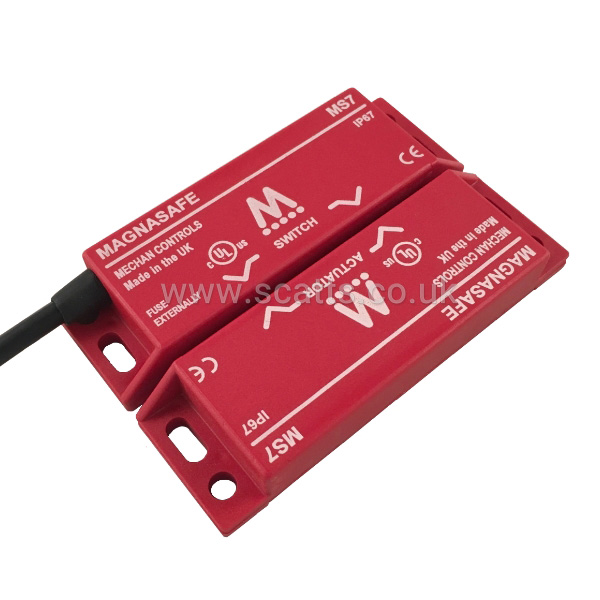

The MAGNASAFE MS7 safety switches are tamper resistant magnetic safety switches suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS7 safety switches are easy to install, tolerant to misalignment. The magnetic non-contact operation has a minimum 7 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

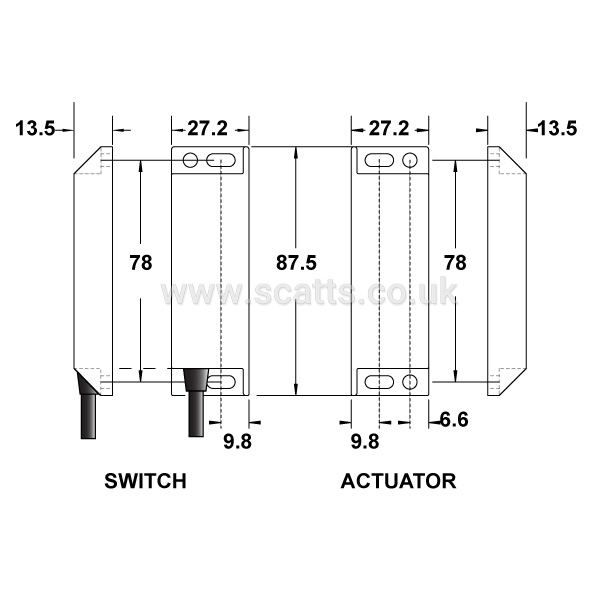

Height |
87.5 mm |
|
Width |
27.2 mm |
|
Depth |
13.5 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US |
Switching Voltage |
24 V DC |
|
Switching Current |
300 mA |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
1 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
10 m |
|
Minimum Sensing Range |
7 mm |
|
Maximum Sensing Range |
20 mm |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£51.80
per 1 (ex. VAT)£62.16
per 1 (inc. VAT)
