Part Number: MS7-ACT
Manufacturer Code: 357.099
Multiples of: 1 | Minimum Order: 1
*** ACTUATOR ONLY ***
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 0.3Amp 24VDC
• 7mm Switching
• ABS Euro Standard Housing
• Fully Sealed IP67

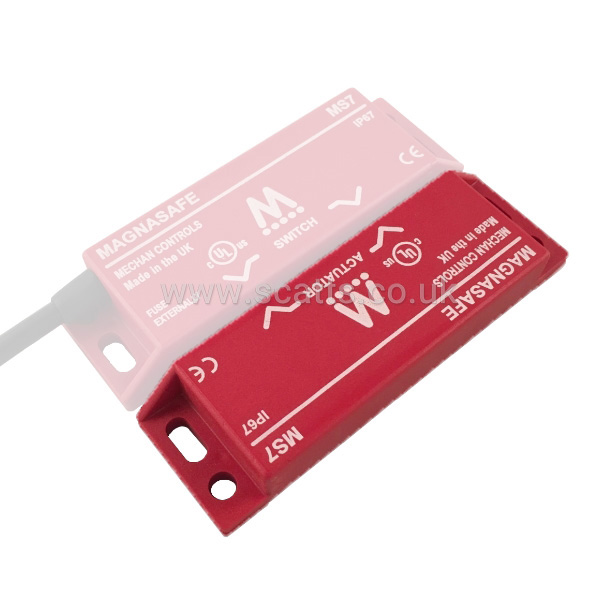

The MAGNASAFE MS7 safety switches are tamper resistant magnetic safety switches suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS7 safety switches are easy to install, tolerant to misalignment. The magnetic non-contact operation has a minimum 7 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|

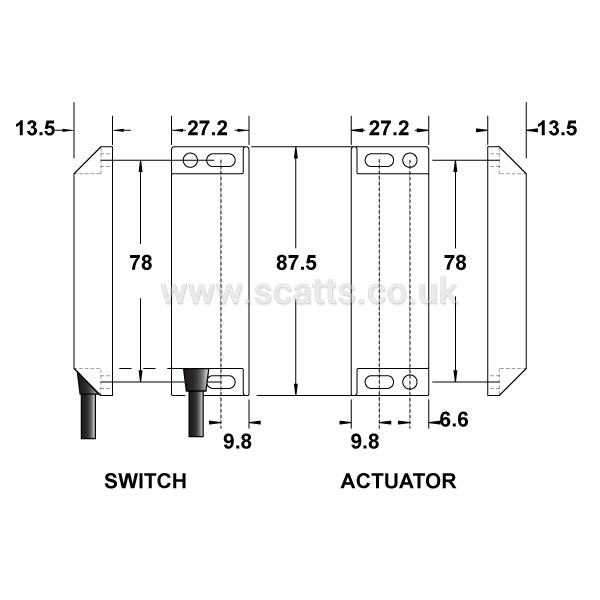

Height |
87.5 mm |
|
Width |
27.2 mm |
|
Depth |
13.5 mm |
Body Material |
ABS |
|
Accessory Type |
Spare Actuator |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
£17.30
per 1 (ex. VAT)£20.76
per 1 (inc. VAT)
