My Part Number:
Part Number: MS8-20-DC-03M
Manufacturer Code: 358.010
Multiples of: 1 | Minimum Order: 1
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 0.3Amp 24VDC
• 15 mm Switching
• 3 Operating Faces
• ABS Slim Line Housing
• Fully Sealed IP67

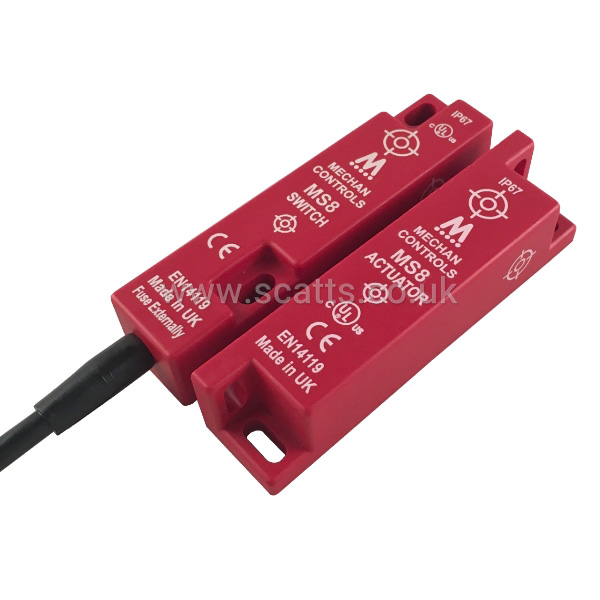

The MAGNASAFE MS8 non-contact safety switches are an industry standard, slim-line, space saving housing made from Red ABS. Fully encapsulated, the MS8 safety switches have been designed with a larger than standard switching distance to ensure easy to install, tolerant to misalignment. The non-contact operation has a 15 - 25 mm switching distance helping to ensure a long and trouble free operating life where guarding alignment is an issue.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

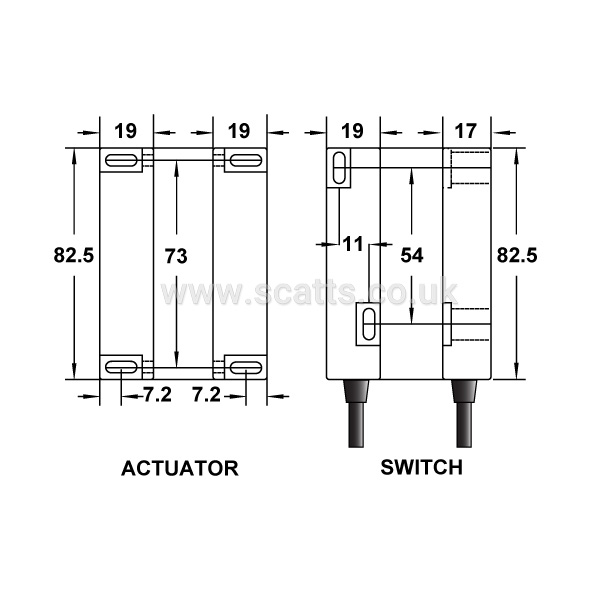

Height |
82.5 mm |
|
Width |
19 mm |
|
Depth |
17 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Switching Voltage |
24 V DC |
|
Switching Current |
400 mA |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
2 N/C |
|
Cable Length |
3 m |
|
Minimum Sensing Range |
25 mm |
|
Maximum Sensing Range |
35 mm |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£48.20
per 1 (ex. VAT)£57.84
per 1 (inc. VAT)
