My Part Number:
Part Number: RDNK-21-DC-LQD
Manufacturer Code: 364.085
Multiples of: 1 | Minimum Order: 1
• Uniquely Coded RFID Safety Switch
• 2 NO + 1NC Contacts
• Fully Encapsulated, IP69K
• M12 8-PIN Leaded Quick Disconnect
• Dual Colour LED indication
RDNK are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 500mA at 24Vdc.
With tamper proof RFID switching, the RDNK are suitable for use with safety relays with a low inrush current. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RDNK safety switches are available with an M12 leaded quick disconnect which are fully sealed and suitable for use in most wet / harsh environments.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
M12 |
|

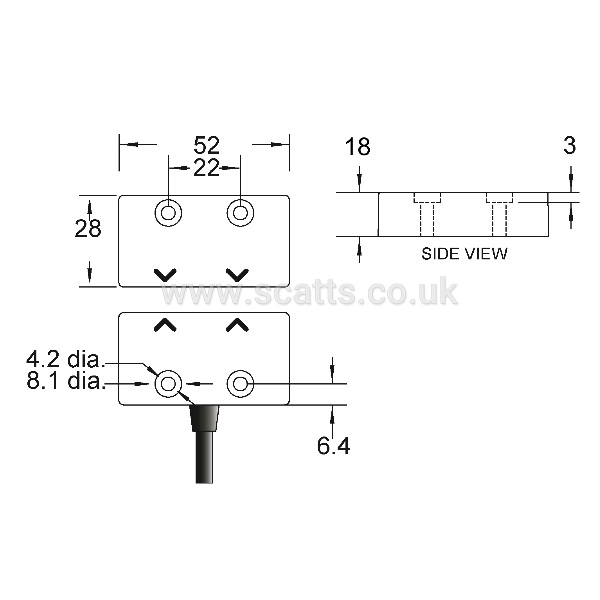

Height |
28 mm |
|
Width |
52 mm |
|
Depth |
18 mm |
|
IP Rating |
IP67, IP69K |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Number Of Pins |
8 |
|
Switching Voltage |
24 V DC |
|
Switching Current |
500 mA |
|
Supply Voltage |
24 V DC |
|
Actuator |
Non-Contact - RFID |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
22 mm |
|
Additional Features |
LED Indication |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£140.20
per 1 (ex. VAT)£168.24
per 1 (inc. VAT)
