My Part Number:
Part Number: RSSG-21-DC-LQD
Manufacturer Code: 364.025
Multiples of: 1 | Minimum Order: 1
• Uniquely Coded RFID Safety Switch
• 2 NO + 1NC Contacts
• Fully Encapsulated, IP69K
• M12 8-PIN Leaded Quick Disconnect
• Dual Colour LED indication
RSSG-LQD are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 3A at 24Vdc & 230Vac.
With tamper proof RFID switching, the RSSG-LQD is suitable for use with most safety relays. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSG-LQD safety switches are available with M12 leaded quick disconnect which are fully sealed and suitable for use in most wet / harsh environments.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
M12 |
|

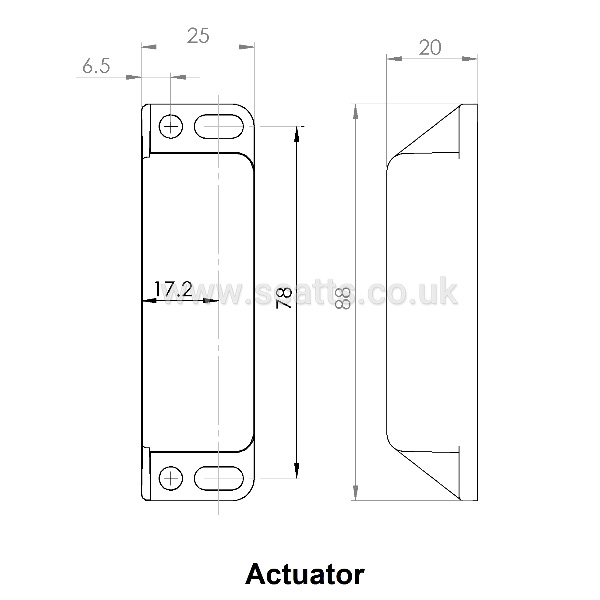

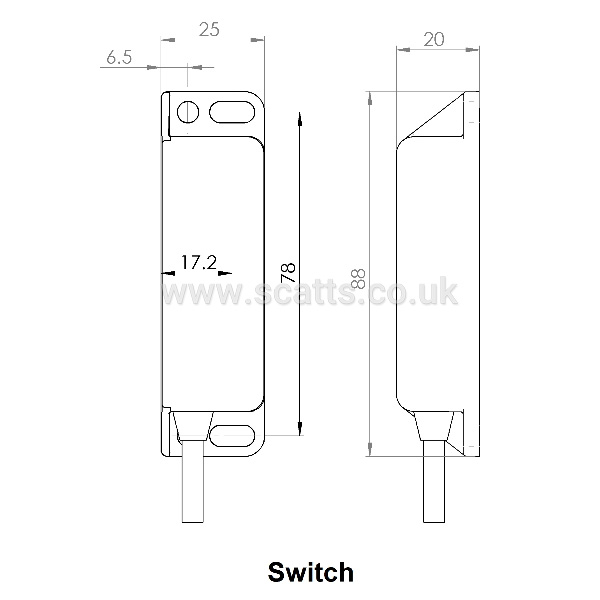

Height |
88 mm |
|
Width |
25 mm |
|
Depth |
20 mm |
|
IP Rating |
IP67, IP69K |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Number Of Pins |
8 |
|
Switching Voltage |
24 V DC |
|
Switching Current |
3 A |
|
Supply Voltage |
24 V DC |
|
Actuator |
Non-Contact - RFID |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
22 mm |
|
Additional Features |
LED Indication |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£140.20
per 1 (ex. VAT)£168.24
per 1 (inc. VAT)
