My Part Number:
Part Number: RSSO-ACT
Manufacturer Code: 364.055
Multiples of: 1 | Minimum Order: 1
*** ACTUATOR ONLY ***
• Uniquely Coded RFID Safety Switch
• 2 NO + 1NC Contacts
• Fully Encapsulated, IP69K
• Pre-wired, 3, 6 or 10 metre cable
• Dual Colour LED indication
RSSO are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 500mA at 24Vdc.
With tamper proof RFID switching, the RSSO are suitable for use with safety relays with a low inrush current. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSO safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

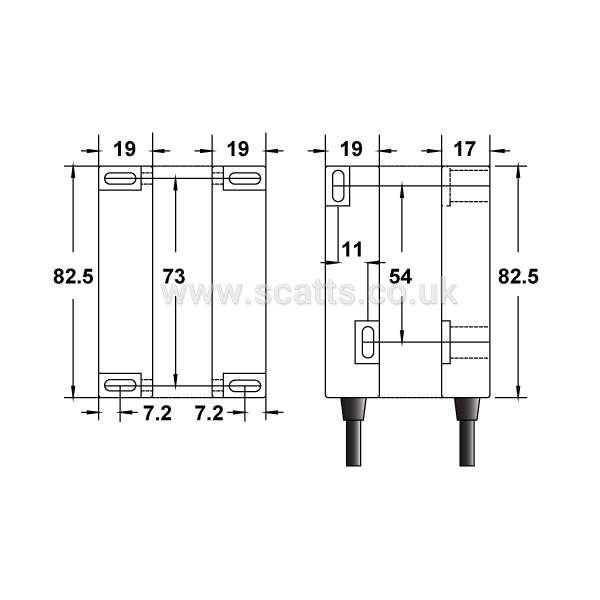

Brand |
MECHAN CONTROLS |
|
Height |
82.5 mm |
|
Width |
19 mm |
|
Depth |
17 mm, 19 mm |
Accessory Type |
Spare Actuator |
|
£28.90
per 1 (ex. VAT)£34.68
per 1 (inc. VAT)
