My Part Number:
Part Number: RSSR-21-DC-10M
Manufacturer Code: 364.002
Multiples of: 1 | Minimum Order: 1
• Uniquely Coded RFID Safety Switch
• 2 NO + 1NC Contacts
• Fully Encapsulated, IP69K
• Pre-wired, 3, 6 or 10 metre cable
• Dual Colour LED indication
RSSR are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 3A at 24Vdc & 230Vac.
With tamper proof RFID switching, the RSSR is suitable for use with most safety relays. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSR safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|

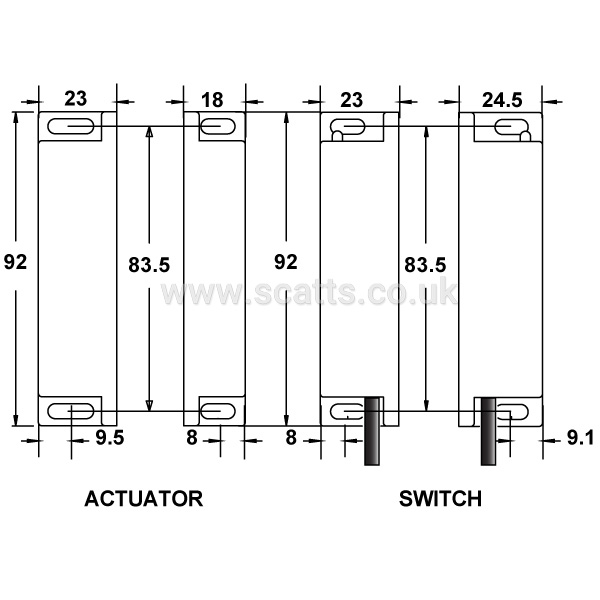

Height |
92 mm |
|
Width |
24 mm |
|
Depth |
23 mm |
|
IP Rating |
IP67, IP69K |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Switching Voltage |
24 V DC |
|
Switching Current |
3 A |
|
Supply Voltage |
24 V DC |
|
Actuator |
Non-Contact - RFID |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
10 m |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
22 mm |
|
Additional Features |
LED Indication |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£130.10
per 1 (ex. VAT)£156.12
per 1 (inc. VAT)
• Uniquely Coded RFID Safety Switch
• 2 NO + 1NC Contacts
• Fully Encapsulated, IP69K
• Pre-wired, 3, 6 or 10 metre cable
• Dual Colour LED indication
RSSR are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 3A at 24Vdc & 230Vac.
With tamper proof RFID switching, the RSSR is suitable for use with most safety relays. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSR safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|
Height |
92 mm |
|
Width |
24 mm |
|
Depth |
23 mm |
|
IP Rating |
IP67, IP69K |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Switching Voltage |
24 V DC |
|
Switching Current |
3 A |
|
Supply Voltage |
24 V DC |
|
Actuator |
Non-Contact - RFID |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
10 m |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
22 mm |
|
Additional Features |
LED Indication |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
