My Part Number:
Part Number: RSSR-21-DC-LQD
Manufacturer Code: 364.005
Multiples of: 1 | Minimum Order: 1
• Uniquely Coded RFID Safety Switch
• 2 NO + 1NC Contacts
• Fully Encapsulated, IP69K
• M12 Quick Disconnect
• Dual Colour LED indication
RSSR are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 3A at 24Vdc & 230Vac.
With tamper proof RFID switching, the RSSR is suitable for use with most safety relays. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSR safety switches are available with M12 leaded quick disconnect which are fully sealed and suitable for use in most wet / harsh environments.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
M12 |
|

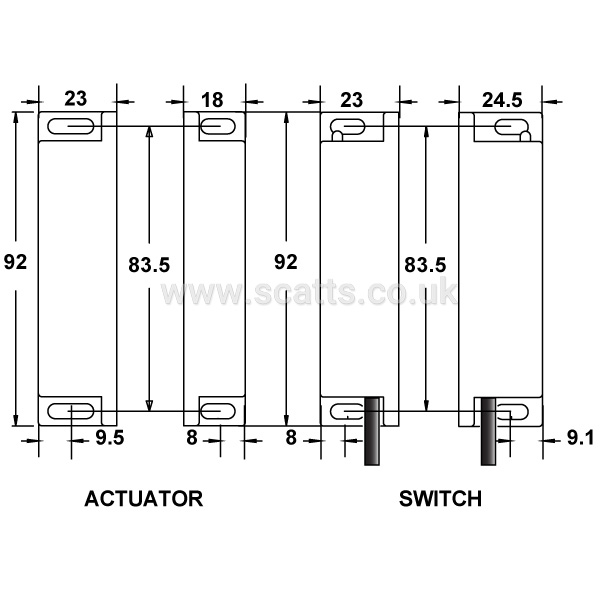

Height |
92 mm |
|
Width |
24 mm |
|
Depth |
23 mm |
|
IP Rating |
IP67, IP69K |
|
Body Material |
ABS Plastic |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, UL - Canada & US, TUV SUD |
Number Of Pins |
8 |
|
Switching Voltage |
24 V DC |
|
Switching Current |
3 A |
|
Supply Voltage |
24 V DC |
|
Actuator |
Non-Contact - RFID |
|
Safety Contacts |
2 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Minimum Sensing Range |
10 mm |
|
Maximum Sensing Range |
22 mm |
|
Additional Features |
LED Indication |
|
SIL Rating |
SIL3 |
|
Performance Level |
PLe |
|
£140.20
per 1 (ex. VAT)£168.24
per 1 (inc. VAT)
