My Part Number:
Part Number: A9A26909
Multiples of: 1 | Minimum Order: 1

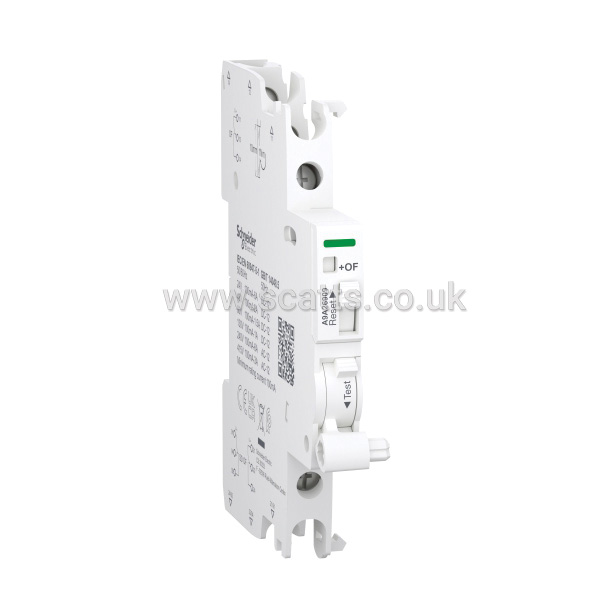

Auxiliary contact, Acti9 A9A, iOF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection
[Ui] rated insulation voltage: 500 V
[Uimp] rated impulse withstand voltage: 4 kV
Local signalling: Mechanical indicator
Mounting mode: Clip-on
Mounting location: Left side of circuit-breaker
mounting support: DIN rail
Comb busbar and distribution block compatibility: NO
height: 90 mm
Width: 9 mm
Depth: 73 mm
Net weight: 43 g
Colour: White
Connections - terminals: Screw clamp terminal (top and bottom) 1 cable(s) 0.5…2.5 mm² - flexible, Screw clamp terminal (top and bottom) 1 cable(s) 1…4 mm² - rigid, Screw clamp terminal (top and bottom) 2 cable(s) 2.5 mm² - rigid, Screw clamp terminal (top and bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
Wire stripping length: 10 mm
Tightening torque: 1 N.m top and bottom
Brand |
SCHNEIDER MERLIN GERIN |
|
£54.82
per 1 (ex. VAT)£65.78
per 1 (inc. VAT)
