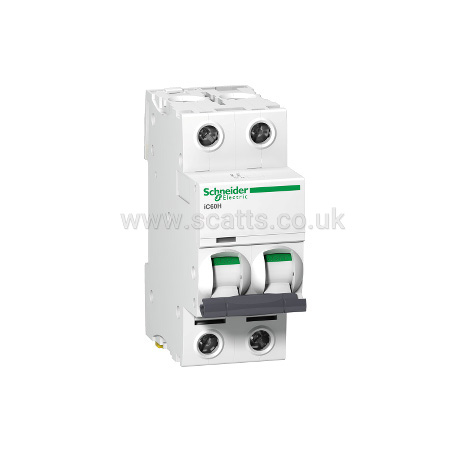

IC60H 2P 2A TYPE C 10KA MCB

Acti9 iC60H 2P 2A C Miniature Circuit breaker

Range: Acti 9
Poles description: 2P
Number of protected poles: 2
[In] rated current: 2 A
Network type: AC
Trip unit technology: Thermal-magnetic
Curve code: C
Utilisation category: Category A conforming to EN/IEC 60947-2
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 440 V AC 50/60 Hz
Magnetic tripping limit: 8 x In +/- 20 %
Limitation class: 3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: Trip indicator
Mounting mode: Clip-on
Mounting support: Rail
9 mm pitches: 4
Height: 85 mm
Width: 36 mm
Depth: 78.5 mm
Colour: White
Provision for padlocking: Padlockable
Connections - terminals: Single terminal (top or bottom) 1…25 mm² rigid, Single terminal (top or bottom) 1…16 mm² flexible
Earth-leakage protection: Separate block
