My Part Number:

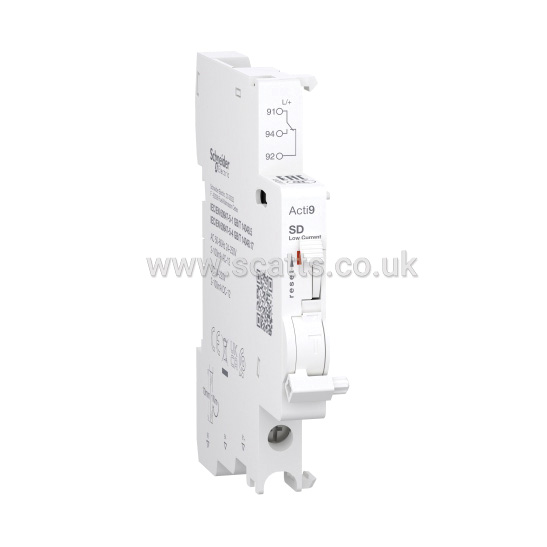

Part Number: A9N26917
Multiples of: 1 | Minimum Order: 1
Auxiliary contact, Acti9 A9N, SD, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
Operating mode: Daisy chain up to 100 devices
[Ui] rated insulation voltage: 500 V
[Uimp] rated impulse withstand voltage: 4 kV
Local signalling: Mechanical indicator
Mounting mode: Clip-on
Mounting location: Left side of circuit-breaker
mounting support: DIN rail
Comb busbar and distribution block compatibility: Top: YES
height: 85.3 mm
Width: 9 mm
Depth: 68 mm
Net weight: 30 g
Colour: White
Connections - terminals: Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid, Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible, Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
Wire stripping length: 9 mm
Tightening torque: 1 N.m bottom
Brand |
SCHNEIDER MERLIN GERIN |
|
£50.51
per 1 (ex. VAT)£60.61
per 1 (inc. VAT)
