My Part Number:
Part Number: LV430840
Multiples of: 1 | Minimum Order: 1

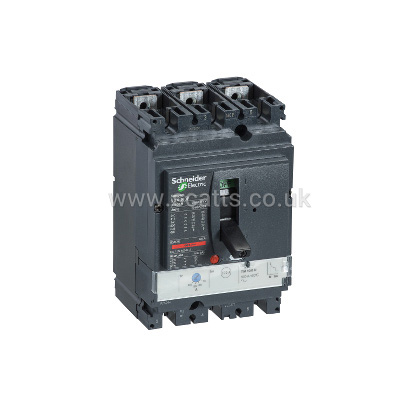

Circuit breaker Compact NSX160N, 50 KA at 415 VAC, TMD trip unit 160 A, 3 poles 3d
Range: Compact
Product or component type: Circuit breaker
Device application: Distribution
Poles description: 3P
Protected poles description: 3t
Network type: AC
Network frequency: 50/60 Hz
[In] rated current: 160 A at 40 °C
[Ui] rated insulation voltage: 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 8 kV
[Ue] rated operational voltage: 690 V AC 50/60 Hz
Breaking capacity code: N 50 kA 415 V AC
Suitability for isolation: Yes conforming to EN 60947-2, Yes conforming to IEC 60947-2
Utilisation category: Category A
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit protection functions: LI
Pollution degree: 3 conforming to IEC 60664-1
Brand |
SCHNEIDER MERLIN GERIN |
|
£644.89
per 1 (ex. VAT)£773.87
per 1 (inc. VAT)
