My Part Number:
Part Number: E2E-X4B3D-12-M1
Manufacturer Code: 694160 / E2EN1124C
Multiples of: 1 | Minimum Order: 1

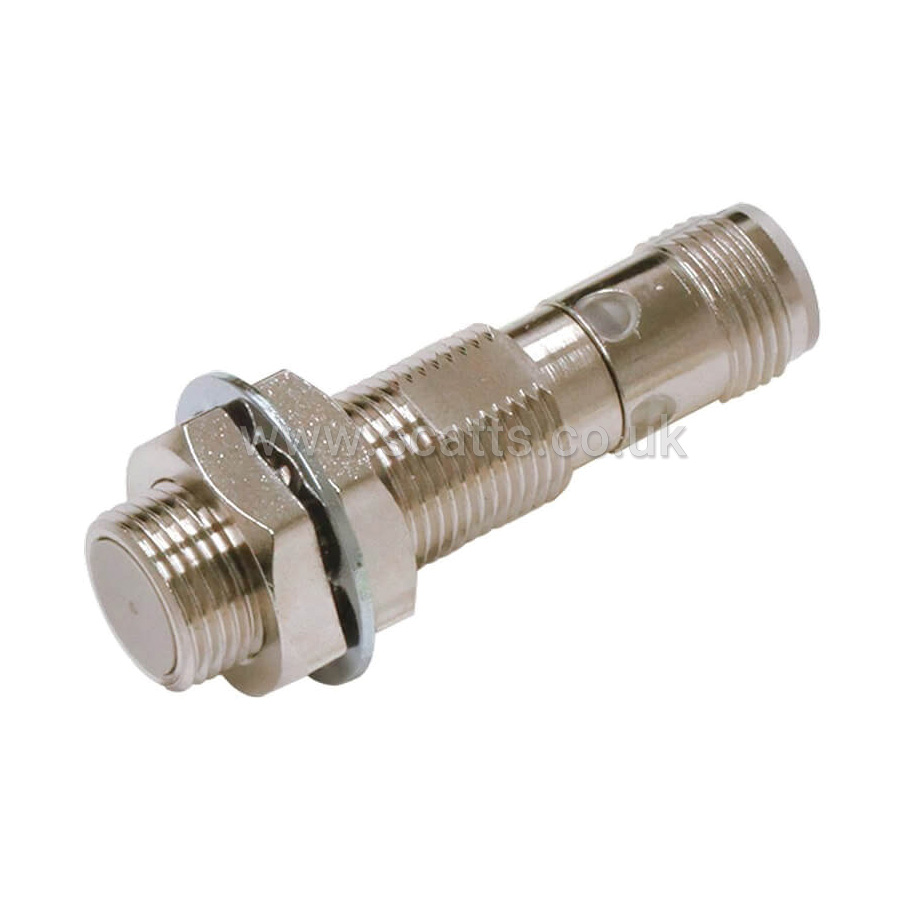

Proximity sensor, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector
Size: M12
Mounting type: Quasi-flush
Sensing distance: 4 mm
Overall length: 48 mm
Thread length: 29 mm
Material housing: Brass, nickel plated
Output type: IO-Link, PNP
Operation mode: NO + NC
Connection method: Connector M12
Cable specifications: -
IO-Link function: Yes
IO-Link baud rate: COM2 (38.4 kbps)
Degree of protection (IP): IP67/IP69K
Brand |
OMRON |
|
Sensing Distance |
4 mm |
|
Output Type |
PNP |
|
Detection Method |
Inductive |
|
£39.59
per 1 (ex. VAT)£47.51
per 1 (inc. VAT)
