8PIN RELAY+PB+LED+DIO.DPDT 10A

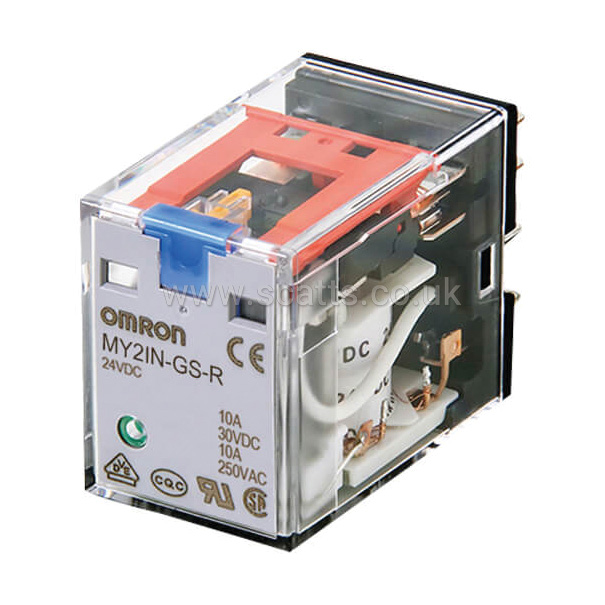

MY-GS-R Industrial Plug-in Power Relay


The MY-GS-R electromechanical relay has new features that add more value to the MYS relay that it’s replacing. The MY-GS-R offers the same vibration resistance, reduced wiring times, unified component dimensions, and industry certifications that customers enjoy on the MYS relay, but with an integrated mechanical indicator to visually confirm that it’s switching properly.

Max. switching voltage: 250 VAC, 220 VDC
Minimum Load: 1 mA @ 5 VDC
Contact arrangement: DPDT
Rated load (resistive): 10 A @ 250 VAC, 10 A @ 30 VDC
Rated load (inductive): 6 A @ 250 VAC, 6 A @ 30 VDC
Max. switching voltage: 250 VAC, 220 VDC
Max. switching current: 10 A
Max. switching power(resistive): 2,500 VA, 300 W
Max. switching power (inductive): 440 VA, 48 W
Minimum Load: 1 mA @ 5 VDC
Coil voltage: 24 VDC
Power consumption: Approx. 0.9
Terminal: Plug-in
Indicator: LED, Mechanical
Protection device: Diode
Test button: Latching lever type
Operating temperature: −40 to 70°C
RoHS compliant: Yes
