My Part Number:
Part Number: NBB4-12GM50-E0-M
Manufacturer Code: 240148
Multiples of: 1 | Minimum Order: 1
Inductive sensor
Key Benefits at a Glance
• 4 mm flush
• Extended temperature range
• -40 ... +85 °C
• E1-Type approval
• Increased noise immunity 100 V/m
General specifications
Switching function: Normally open (NO)
Output type: NPN
Rated operating distance sn: 4 mm
Installation: flush
Output polarity: DC
Assured operating distance sa: 0 ... 3.24 mm
Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm
Reduction factor rAl: 0.45
Reduction factor rCu: 0.35
Reduction factor r304: 0.75
Reduction factor rBrass: 0.45

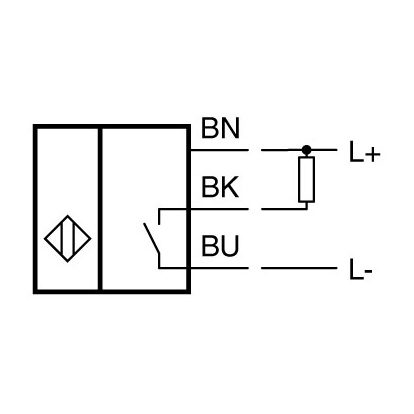

Output type: 3-wire
Brand |
PEPPERL & FUCHS |
|
£79.89
per 1 (ex. VAT)£95.87
per 1 (inc. VAT)
