My Part Number:
Part Number: NBB8-18GM60-B3-V1
Manufacturer Code: 226335
Multiples of: 1 | Minimum Order: 1
A high-performance inductive proximity sensor designed for automated industrial tracking. Unlike standard 2-wire or 3-wire DC sensors, this model natively communicates over an AS-Interface (AS-i) bus network. It allows for seamless, distributed data transmission across manufacturing floors.
Key Technical Specifications:
• Sensing Distance: 8 mm nominal operating range.
• Installation: Flush (embeddable) mounting configuration, allowing it to sit level with the metal mounting surface without false tripping.

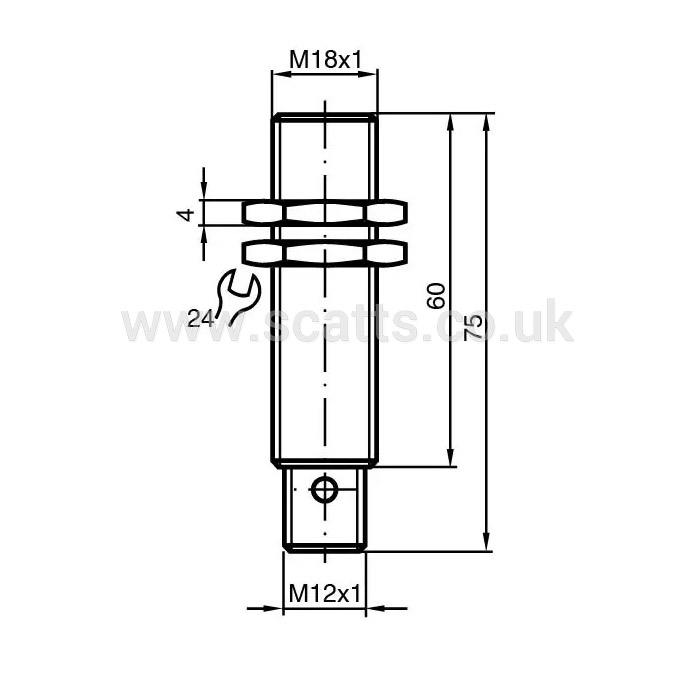

• Housing Design: M18 cylindrical threaded barrel made of robust nickel-plated brass.
• Sensing Face: Highly durable Green PBT plastic.
• Output / Network Type: AS-Interface bus communication.
• Operating Voltage: Optimized for AS-i systems between 26.5 V to 31.9 V DC.
• Switching Function: Fully programmable Normally Open (NO) or Normally Closed (NC) contact option.
• Connection: Industry-standard 4-pin M12 (V1) male quick-disconnect connector.
• Environmental Protection: Fully sealed with an IP67 rating, safeguarding against dust ingress and water exposure.
Key Features & Benefits:
• AS-Interface Network Built-In: Transmits sensor data over standard AS-i networks, vastly simplifying wiring routing and saving installation time.
• On/Off Logic Delay: Features a built-in, disconnectable logic delay to filter false triggers or short pauses during production cycles.
• Flush Design: Mounts entirely flat within or alongside metal surfaces without suffering from false detections.
• Industrial Durability: Features robust nickel-plated brass housing paired with a high chemical-resistance PBT face for challenging workshop environments.
Brand |
PEPPERL & FUCHS |
|
£107.87
per 1 (ex. VAT)£129.44
per 1 (inc. VAT)
