My Part Number:
Part Number: NCB10-30GM40Z0V13G3D
Manufacturer Code: 70126053 / NCB10-30GM40-Z0-V1-3G-3D
Multiples of: 1 | Minimum Order: 1

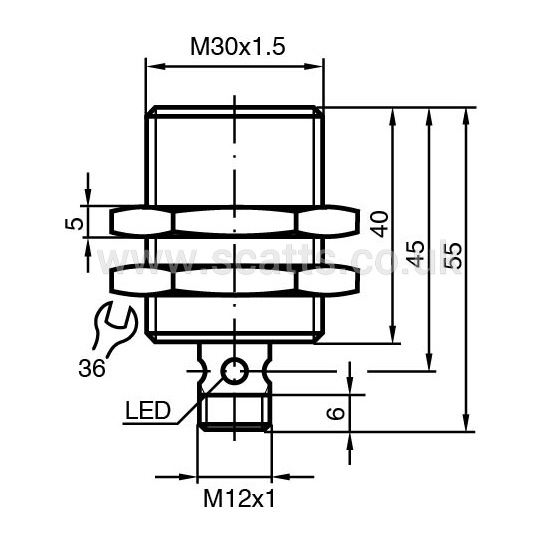

Inductive sensor NCB10-30GM40-Z0-V1-3G-3D
10 mm flush
ATEX-approval for zone 2 and zone 22
Connection type: Connector plug M12 x 1 , 4-pin
Degree of protection: IP67
Brand |
PEPPERL & FUCHS |
|
Mounting Style |
Flush |
|
Electrical Connection |
2 m Pre-Cabled |
|
Width |
30 mm |
|
IP Rating |
IP67 |
|
Body Material |
Stainless Steel |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
70 °C |
Approvals |
UL - US Only, CSA |
Supply Voltage |
12 V DC, 24 V DC , 60 V DC, 3 V DC, 6 V DC, 48 V DC |
|
Body Type |
Cylindrical - Threaded |
|
Sensing Distance |
10 mm |
|
Output Type |
2 Wire |
|
Wiring |
2 Wire |
|
Switch Function |
N/O |
|
Detection Method |
Inductive |
|
Length |
40 mm |
|
Body Diameter |
M30 |
|
£98.88
per 1 (ex. VAT)£118.66
per 1 (inc. VAT)
Inductive sensor NCB10-30GM40-Z0-V1-3G-3D
10 mm flush
ATEX-approval for zone 2 and zone 22
Connection type: Connector plug M12 x 1 , 4-pin
Degree of protection: IP67
Brand |
PEPPERL & FUCHS |
|
Mounting Style |
Flush |
|
Electrical Connection |
2 m Pre-Cabled |
|
Width |
30 mm |
|
IP Rating |
IP67 |
|
Body Material |
Stainless Steel |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
70 °C |
Approvals |
UL - US Only, CSA |
Supply Voltage |
12 V DC, 24 V DC , 60 V DC, 3 V DC, 6 V DC, 48 V DC |
|
Body Type |
Cylindrical - Threaded |
|
Sensing Distance |
10 mm |
|
Output Type |
2 Wire |
|
Wiring |
2 Wire |
|
Switch Function |
N/O |
|
Detection Method |
Inductive |
|
Length |
40 mm |
|
Body Diameter |
M30 |
|
