My Part Number:
Part Number: NCB5-18GM60-B3B-V1
Manufacturer Code: 226333
Multiples of: 1 | Minimum Order: 1
A high-performance inductive proximity sensor belonging to the premium Comfort Series. It is engineered primarily for industrial automation networks utilising AS-Interface (AS-i) communications.
Key Technical Specifications:
• Sensing Distance: 5 mm nominal operating distance.
• Mounting: Flush (shielded) installation.

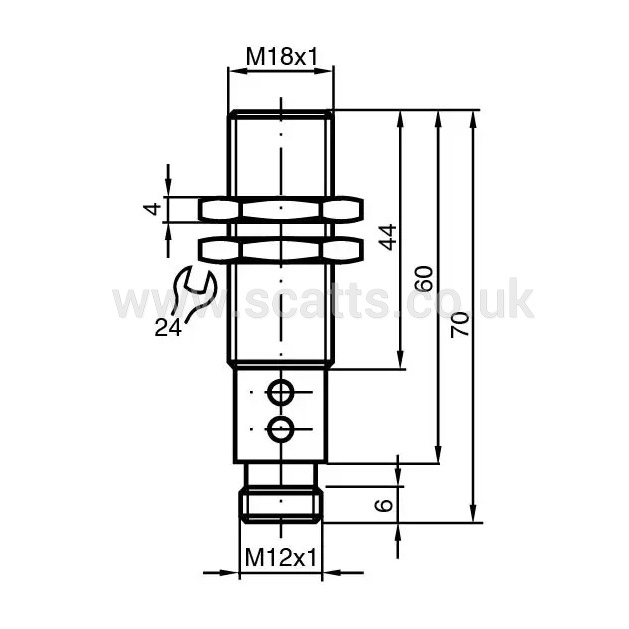

• Housing Design: M18 x 1 cylindrical threaded barrel.
• Output Type: AS-Interface with a programmable Normally Open (NO) or Normally Closed (NC) switching function.
• Operating Voltage: 26.5 V to 31.9 V DC.
• Connection Type: Integrated M12 4-pin quick-disconnect connector.
• Housing Material: High-grade 1.4305 / AISI 303 Stainless Steel.
• Ingress Protection: IP67 rating, dust-tight and resistant to water immersion.
• Operating Temperature: Suitable for environments ranging from -25 °C to +70 °C.
Core Functional Features:
• Network Integration: Operates as an A/B node (slave) within an AS-Interface network, allowing extended addressing capabilities for up to 62 nodes on a single master segment.
• Advanced Monitoring: Features standard stability control warnings, a pre-fault message system, and active oscillator monitoring to reduce unplanned machine downtime.
• Built-in Logic: Includes built-in configuration settings such as a disconnectable On/Off delay to help filter out temporary signals or transient noise.
• Built-in Protection: Equipped with integrated reverse polarity and short-circuit protection to safeguard internal sensor circuitry.
Primary Applications:
This sensor is ideal for non-contact metal detection in material handling systems, assembly lines, and factory automation environments where multiple sensors need to communicate back to a centralised controller via an AS-i fieldbus network.
Brand |
PEPPERL & FUCHS |
|
£87.12
per 1 (ex. VAT)£104.54
per 1 (inc. VAT)
