My Part Number:
Part Number: NJ2-V3-N
Manufacturer Code: 70133090 / NJ2-V3-N
Multiples of: 1 | Minimum Order: 1

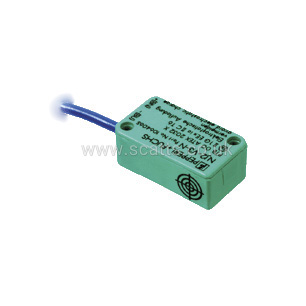

Inductive sensor NJ2-V3-N
2 mm flush
Usable up to SIL 2 acc. to IEC 61508
Connection type: cable PVC , 130 mm
Degree of protection: IP67
Brand |
PEPPERL & FUCHS |
|
Mounting Style |
Flush |
|
Electrical Connection |
2 m Pre-Cabled |
|
Height |
16 mm |
|
Width |
10.2 mm |
|
IP Rating |
IP67 |
|
Body Material |
PBT |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
100 °C |
Approvals |
CCC, FM, EAC, UL - US Only, CSA |
Supply Voltage |
8 V DC |
|
Body Type |
Block |
|
Sensing Distance |
2 mm |
|
Output Type |
NAMUR |
|
Wiring |
2 Wire |
|
Switch Function |
N/C |
|
Detection Method |
Inductive |
|
Length |
27.8 mm |
£61.86
per 1 (ex. VAT)£74.23
per 1 (inc. VAT)
