My Part Number:
Part Number: VAA-2E3A-LIM1PLJS-V1
Manufacturer Code: 210505
Multiples of: 1 | Minimum Order: 1
An AS-Interface safety switch featuring mechanical guard locking and separate actuator monitoring, designed for industrial safety gates and doors up to Performance Level d (PLd).
Key Specifications:
• Safety Rating: Applications up to EN ISO 13849-1 Performance Level d (PLd).

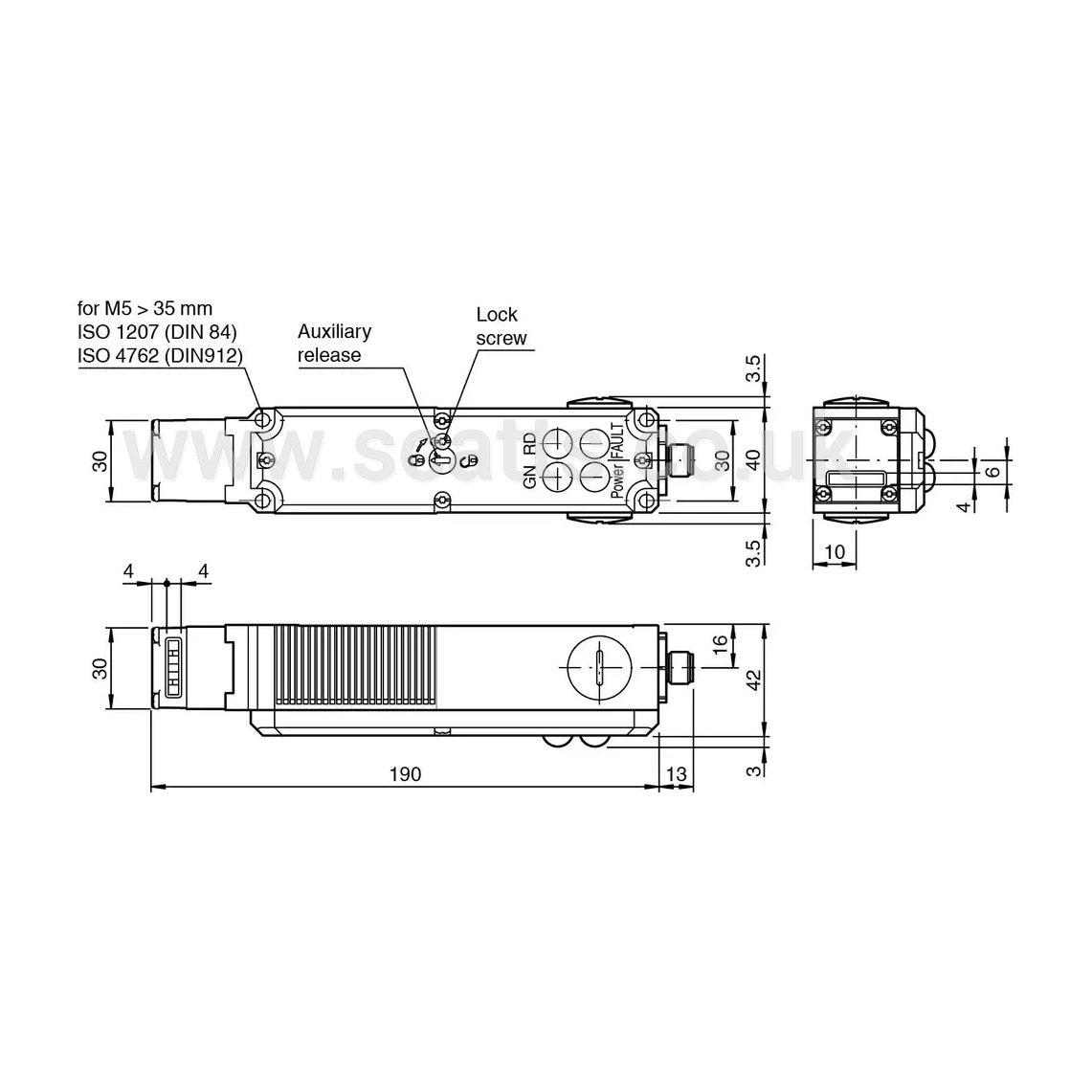

• Design: Narrow 40 mm profile compatible with standard industrial safety switch footprints.
• Locking Force: Integrated magnetic/solenoid guard locking with a holding force up to 2500 N.
• Head: Rotating metal actuation head.
• Interface & Power: Powered directly via the AS-Interface bus network.

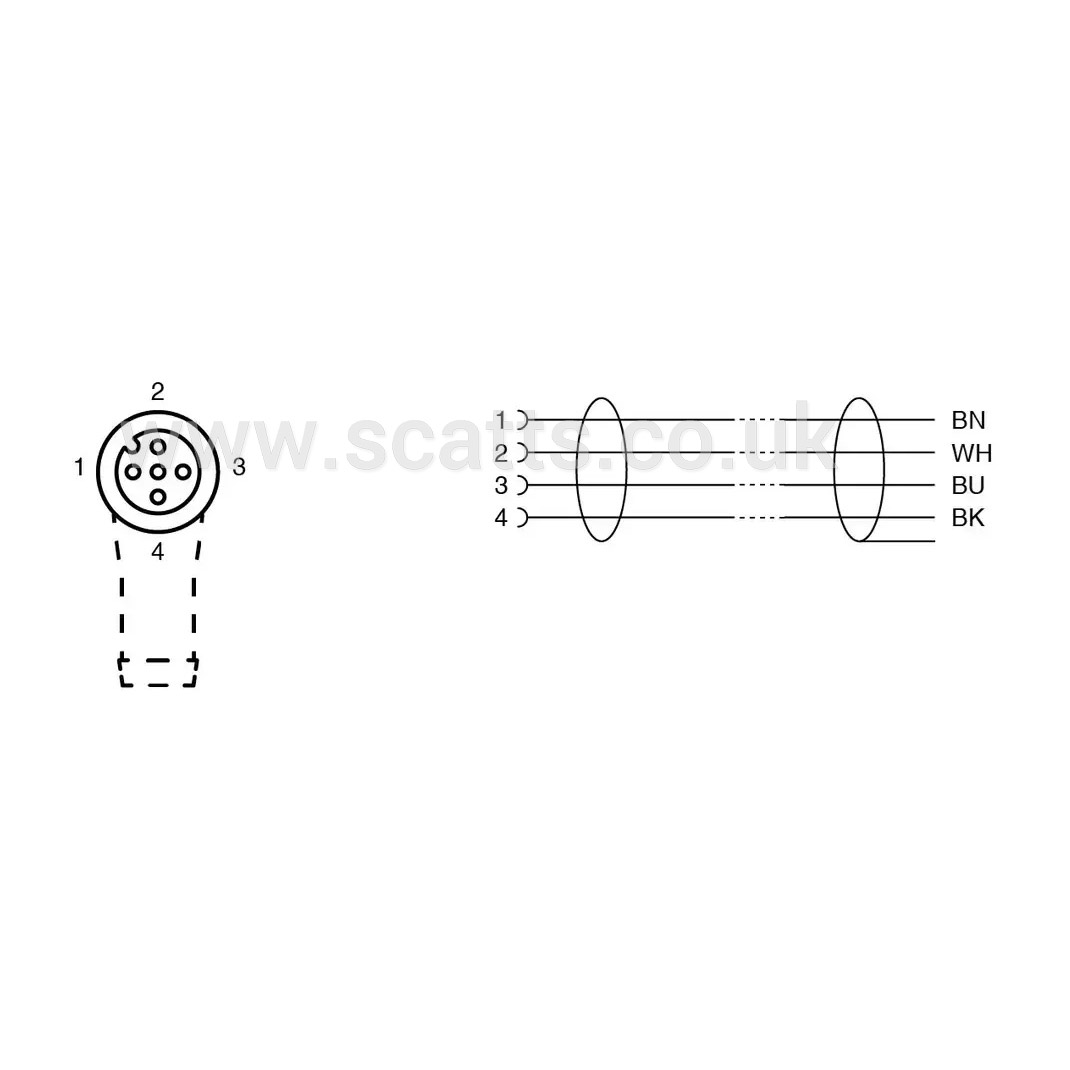

• Connectivity: Standard M12 plug connection.
• Diagnostics: Highly visible 4-way LED display for power, status, and faults.
• Enclosure Protection: IP67 rated for harsh industrial environments.
Key Features:
• Safety Rating: Supports applications up to Performance Level d (PLd).
• Compact Design: Features a 40 mm narrow profile layout compatible with standard safety switch fixture dimensions.
• Guard Locking: Built-in mechanical lock holding force up to 2500 N.
• Flexible Head: Equipped with a rotating metal head for versatile installation options.
• Connectivity & Power: Uses an M12 plug connection and draws its power directly from the AS-Interface bus line.
• Visual Diagnostics: Includes a highly visible 4-way LED display for fast status evaluation.
Brand |
PEPPERL & FUCHS |
|
£308.88
per 1 (ex. VAT)£370.66
per 1 (inc. VAT)
An AS-Interface safety switch featuring mechanical guard locking and separate actuator monitoring, designed for industrial safety gates and doors up to Performance Level d (PLd).
Key Specifications:
• Safety Rating: Applications up to EN ISO 13849-1 Performance Level d (PLd).
• Design: Narrow 40 mm profile compatible with standard industrial safety switch footprints.
• Locking Force: Integrated magnetic/solenoid guard locking with a holding force up to 2500 N.
• Head: Rotating metal actuation head.
• Interface & Power: Powered directly via the AS-Interface bus network.
• Connectivity: Standard M12 plug connection.
• Diagnostics: Highly visible 4-way LED display for power, status, and faults.
• Enclosure Protection: IP67 rated for harsh industrial environments.
Key Features:
• Safety Rating: Supports applications up to Performance Level d (PLd).
• Compact Design: Features a 40 mm narrow profile layout compatible with standard safety switch fixture dimensions.
• Guard Locking: Built-in mechanical lock holding force up to 2500 N.
• Flexible Head: Equipped with a rotating metal head for versatile installation options.
• Connectivity & Power: Uses an M12 plug connection and draws its power directly from the AS-Interface bus line.
• Visual Diagnostics: Includes a highly visible 4-way LED display for fast status evaluation.
Brand |
PEPPERL & FUCHS |
|
