My Part Number:
Part Number: 0707073
Manufacturer Code: HDFK 10
Multiples of: 1 | Minimum Order: 1

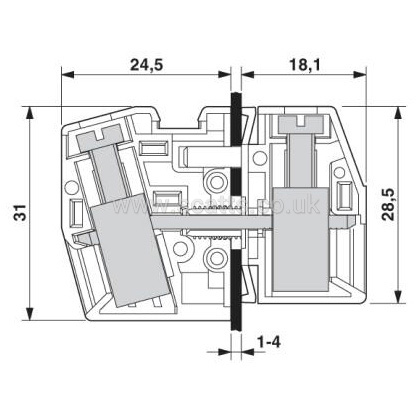

Panel feed-through terminal block
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force

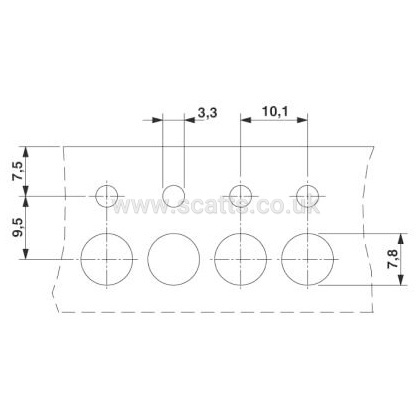

Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Connection method: Screw connection
Number of positions: 1
Load current: 76 A
Cross section: 0.5 mm² - 16 mm²
AWG: 20 - 8
Connection direction of the conductor to plug-in direction: 0 °
Width: 10.1 mm
Colour: grey
Brand |
PHOENIX CONTACT |
|
£4.12
per 1 (ex. VAT)£4.94
per 1 (inc. VAT)
Panel feed-through terminal block
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Connection method: Screw connection
Number of positions: 1
Load current: 76 A
Cross section: 0.5 mm² - 16 mm²
AWG: 20 - 8
Connection direction of the conductor to plug-in direction: 0 °
Width: 10.1 mm
Colour: grey
Brand |
PHOENIX CONTACT |
|
